SPECIFICATIONS

AC/DC Range: DC<75V

Brand Name: NONE

Certification: CE

Choice: yes

High-concerned chemical: none

Model Number: wireless power management module

Origin: Mainland China

Product Features:

1. Using high-quality PCB materials, the quality is guaranteed, greatly improving the service life of the product

2. Exquisite and compact appearance, beautiful arrangement of components

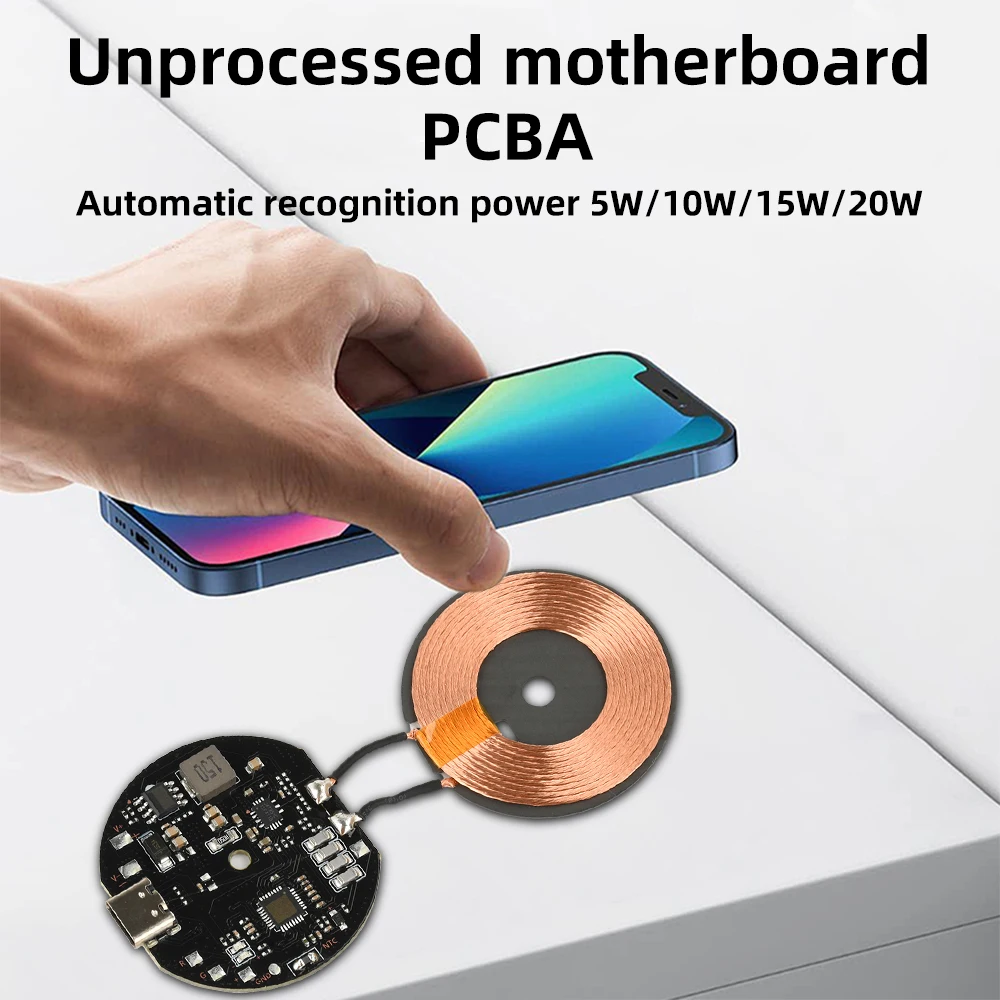

3. Stable product performance, automatic recognition power 5W10W15W20W

4. The product has four protection functions including overcurrent, overvoltage, overtemperature, and short circuit, and supports foreign object inspection (FOD), making it safer and more reassuring to use

5. The product has a wide range of applications, and can be directly used for 12V small cars/24V large trucks without the need for additional voltage regulators

Product Parameters:

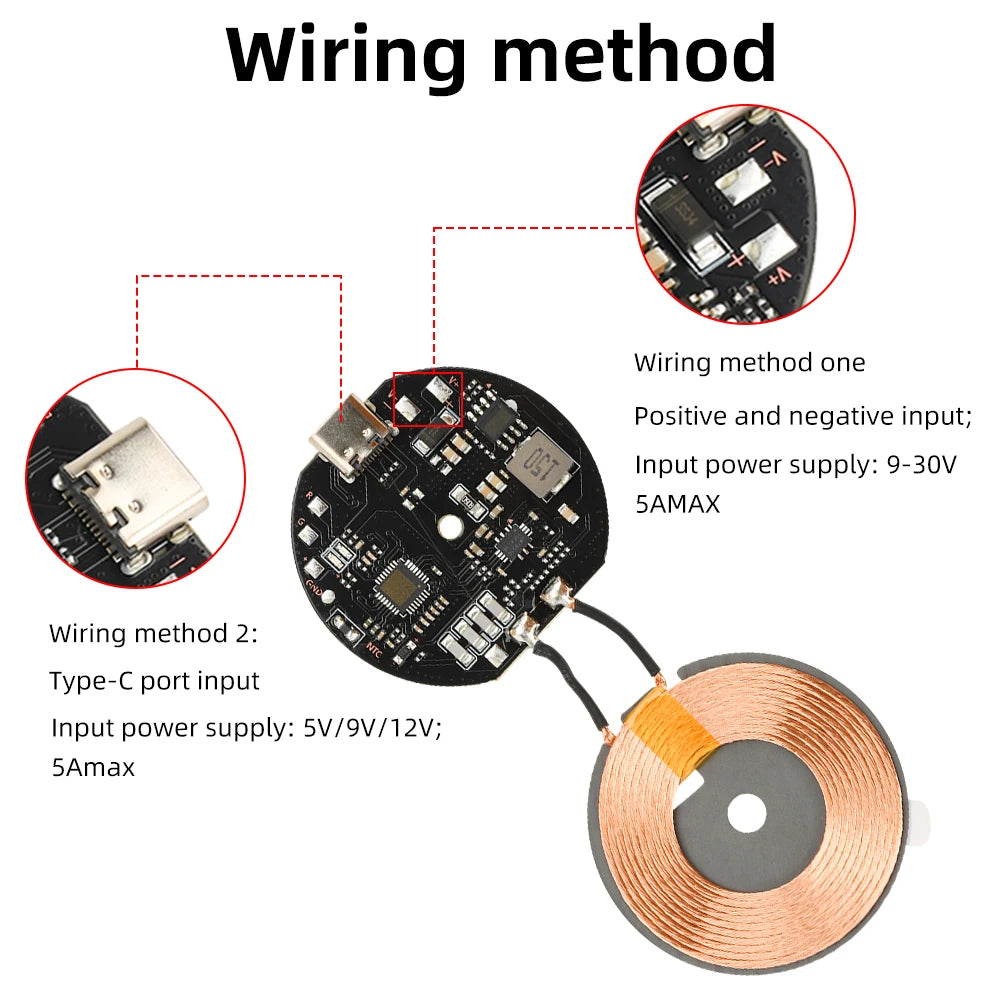

Input voltage:

Type-C port: 5V/9V/12V/QC/PD charging head

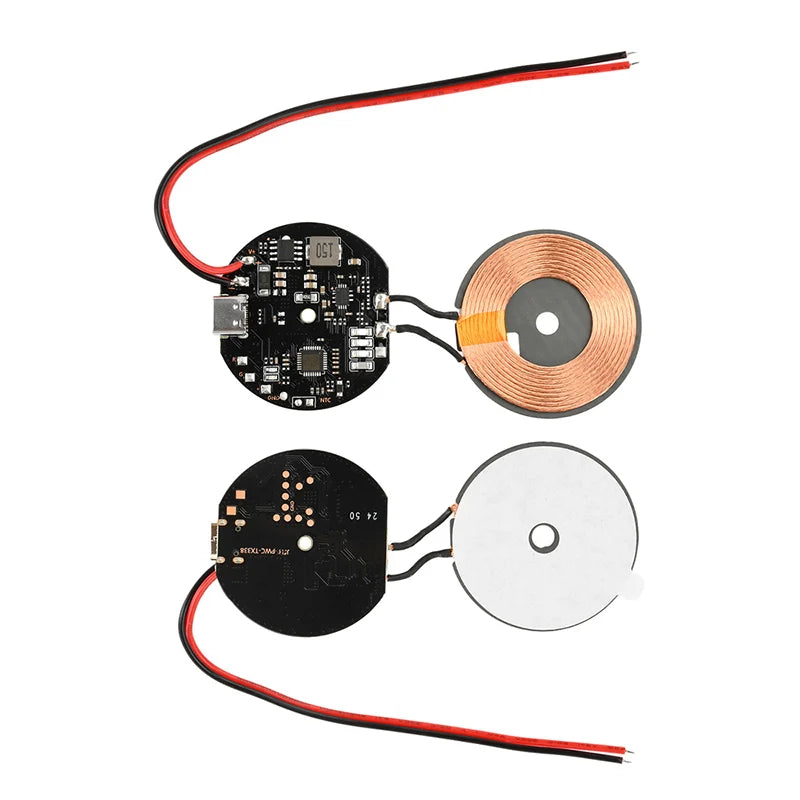

Welding wire: 9V-30V (can be directly connected to the vehicle for use)

Output power:

Input 5V, output 5W (Max)

Input 9V/12V-30V, output 5W/10W/15W/20W automatic recognition

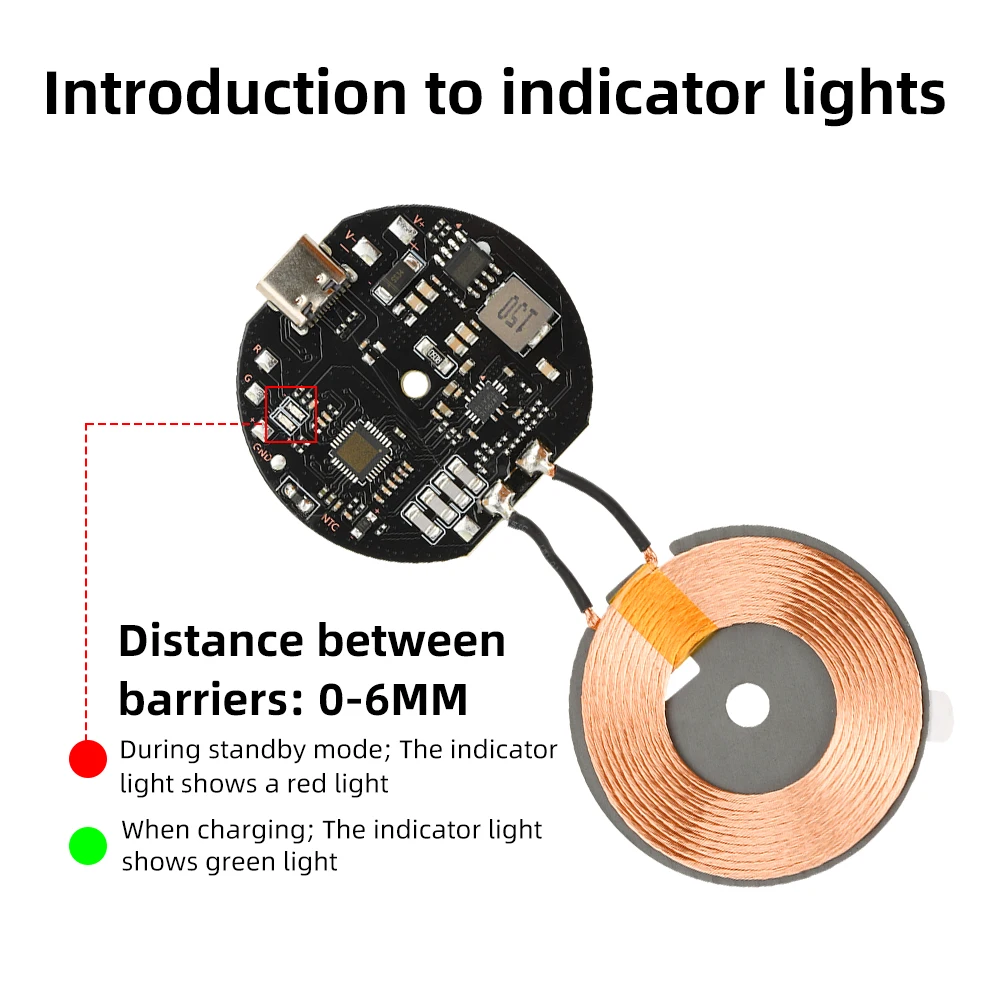

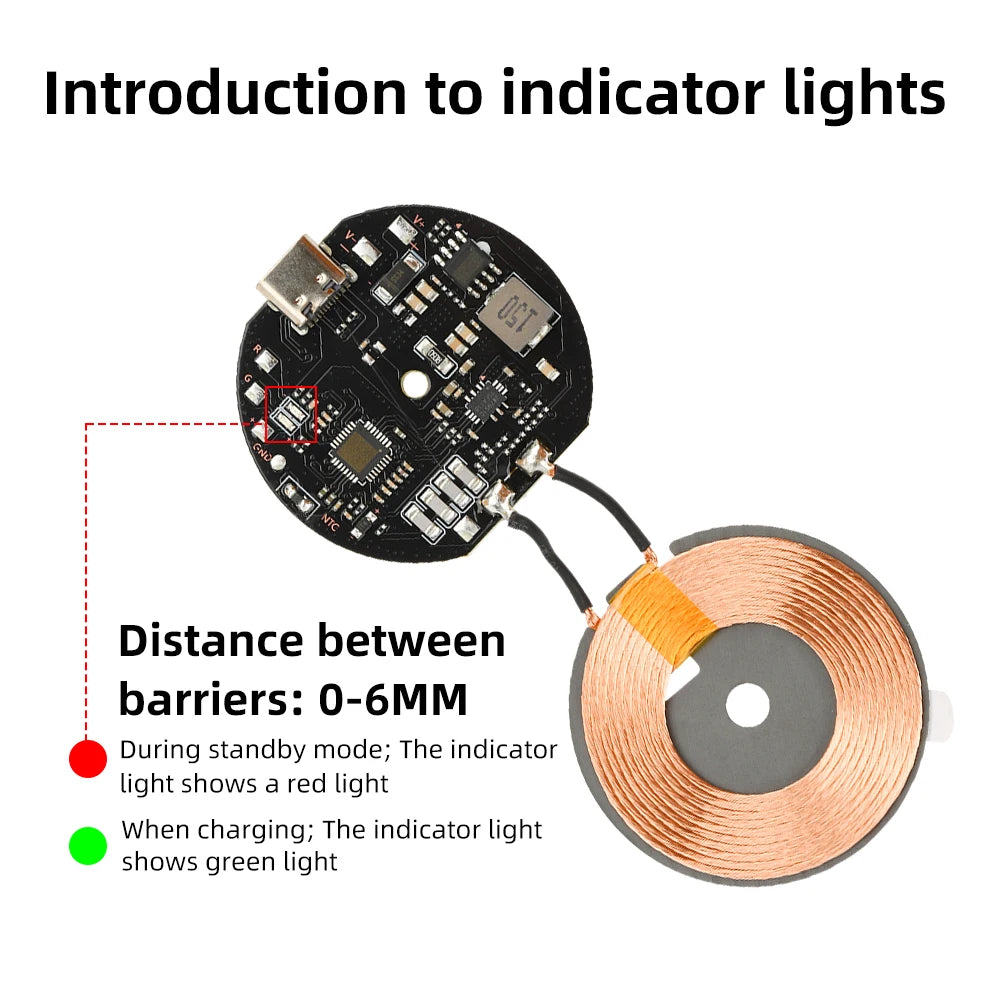

Sensing distance: Barrier: 2-6mm

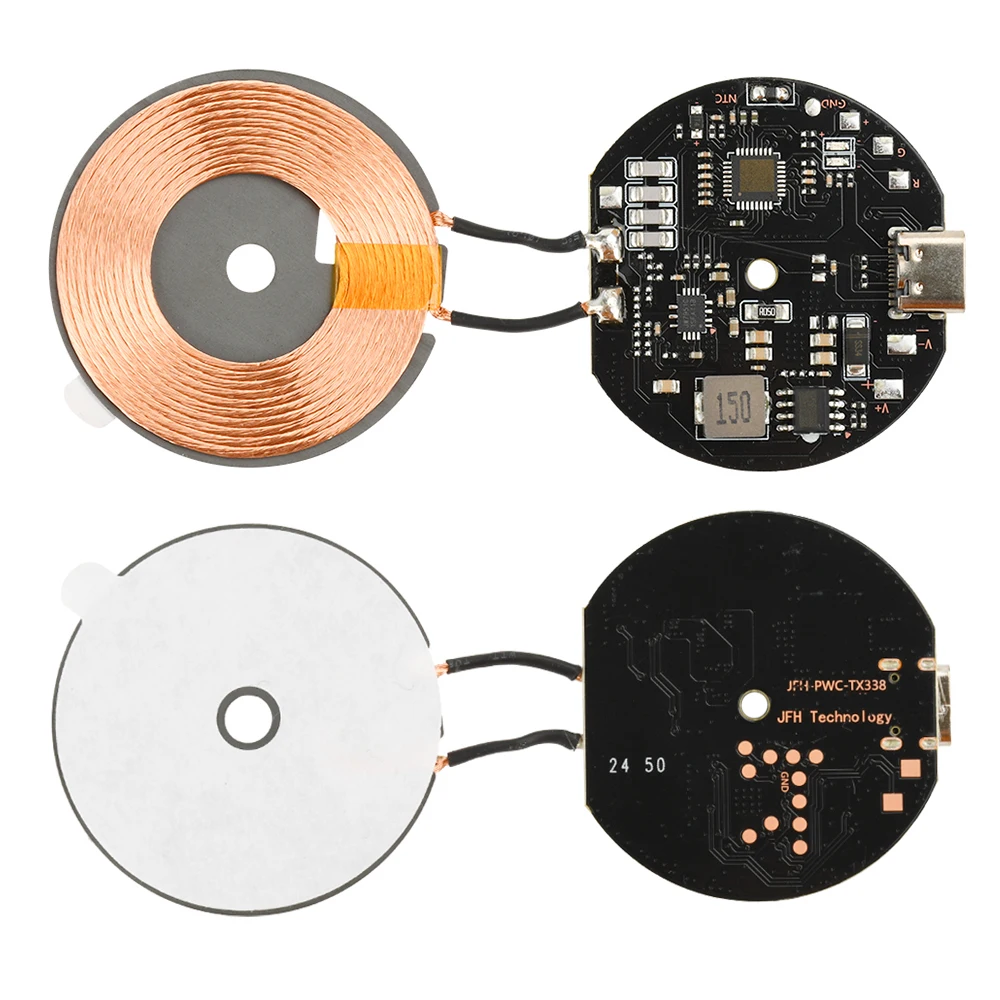

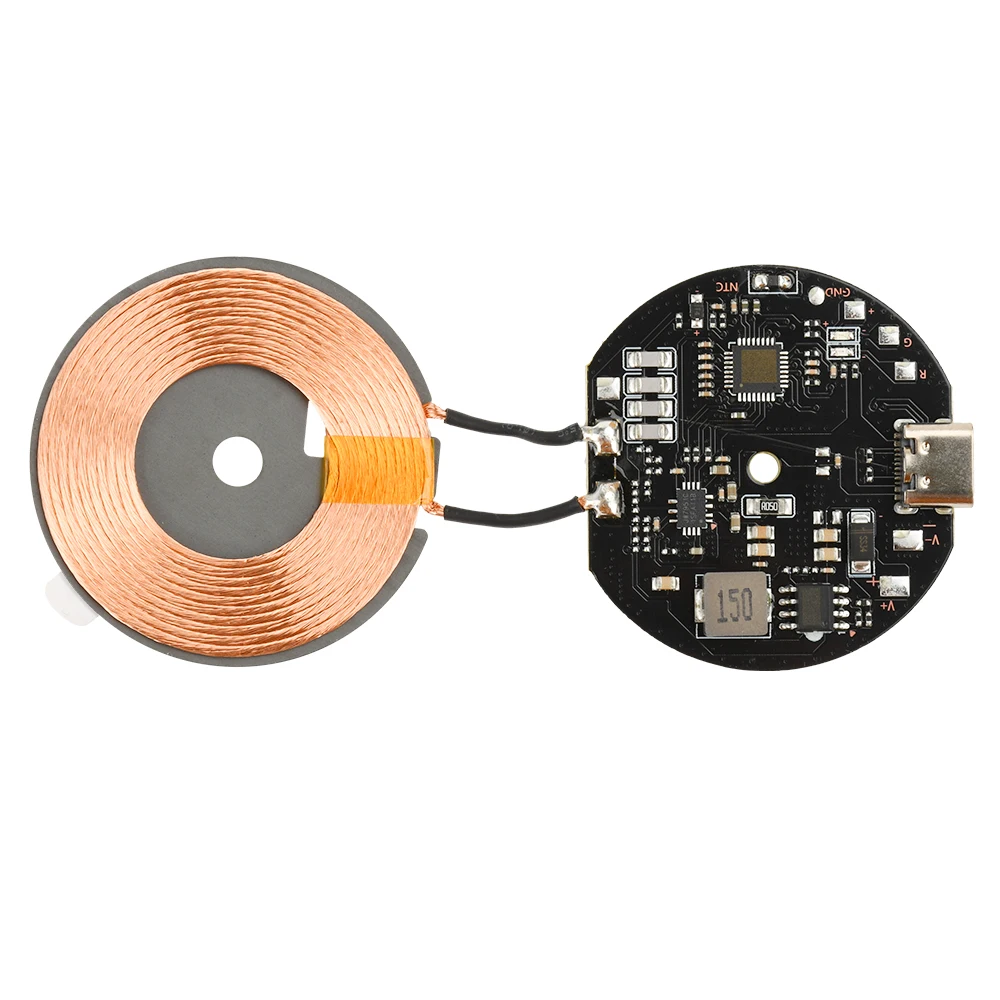

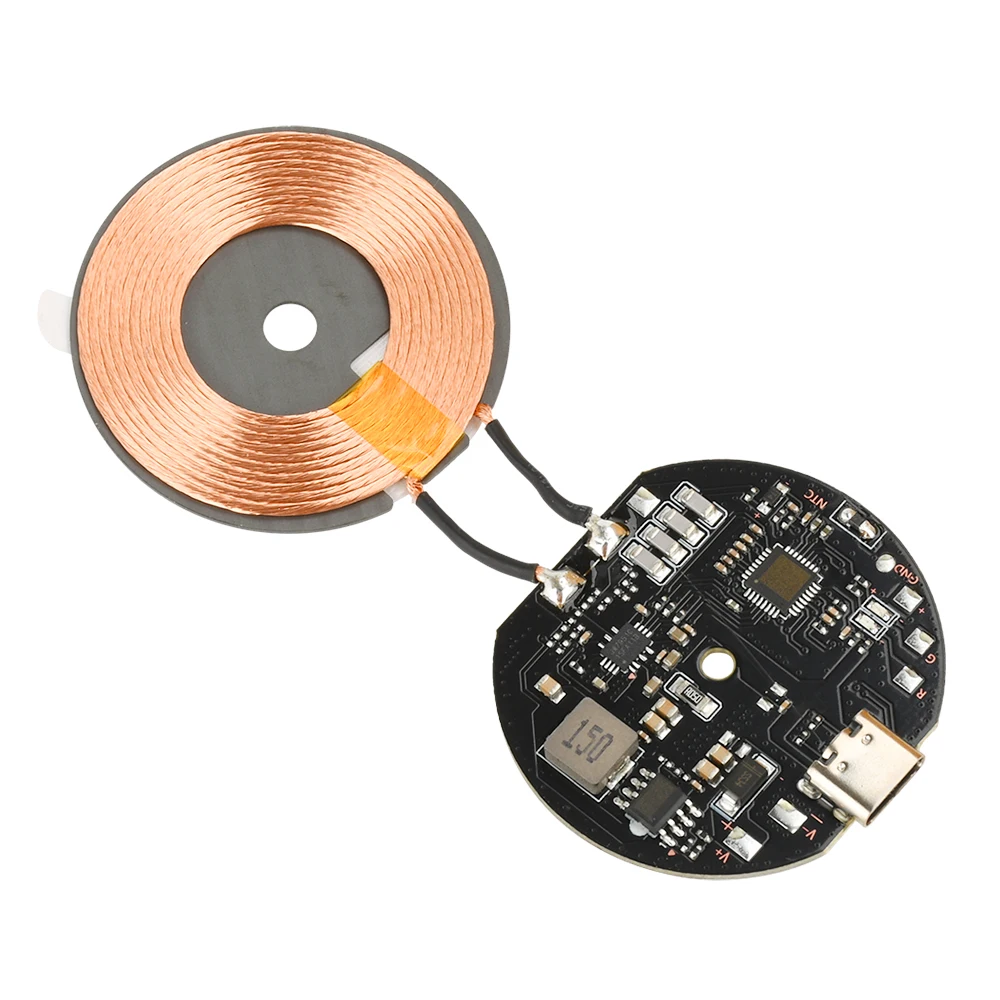

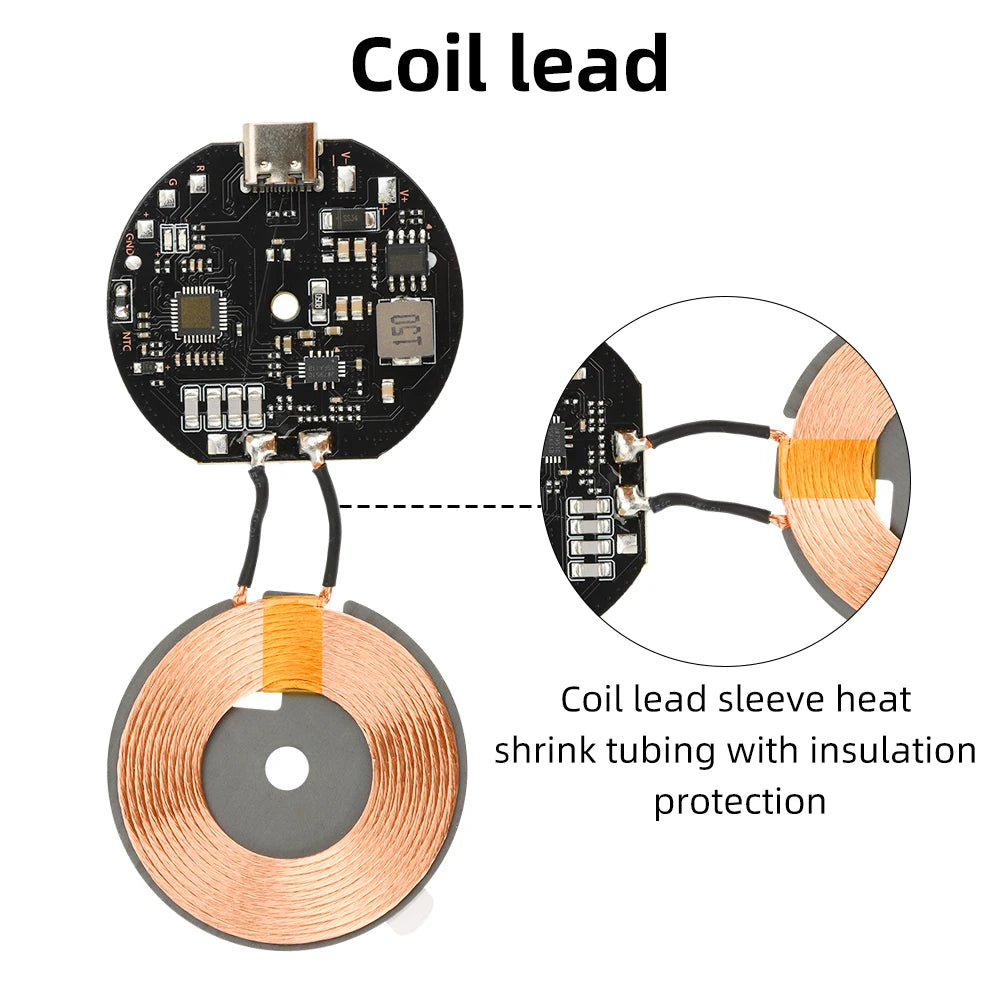

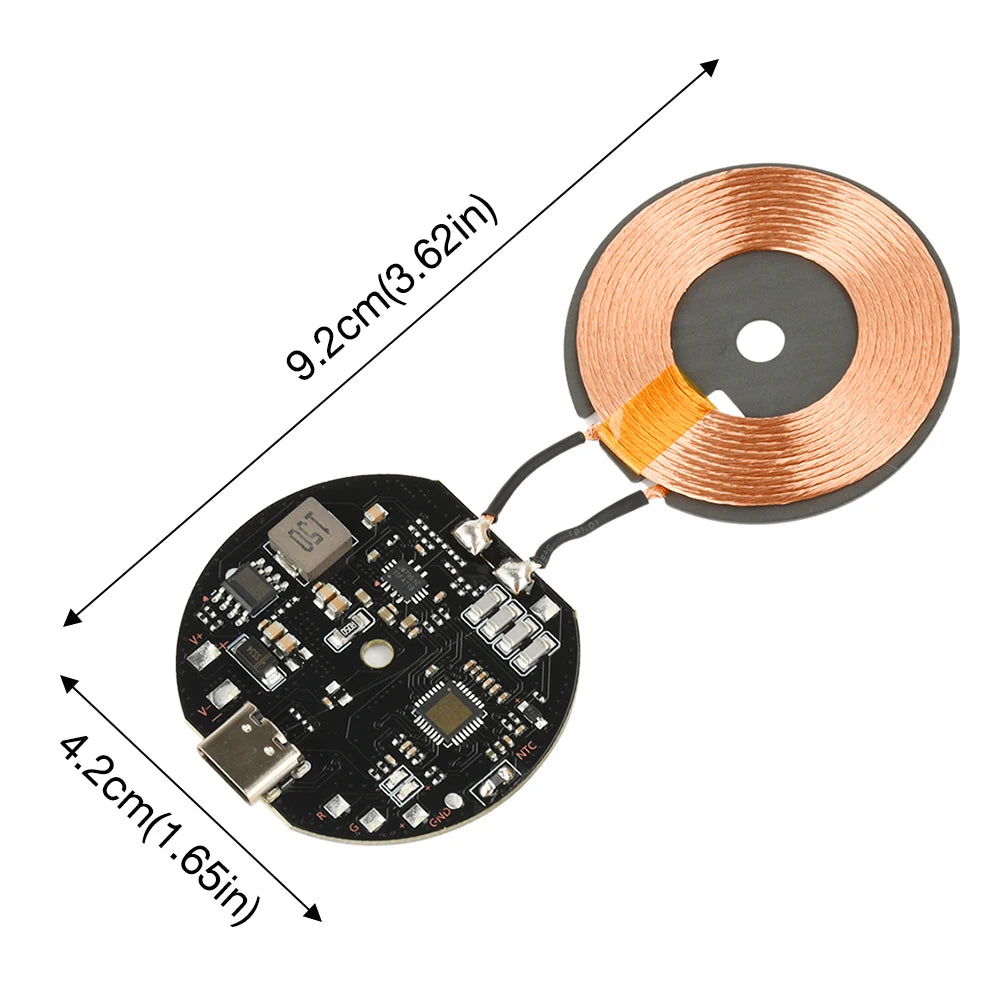

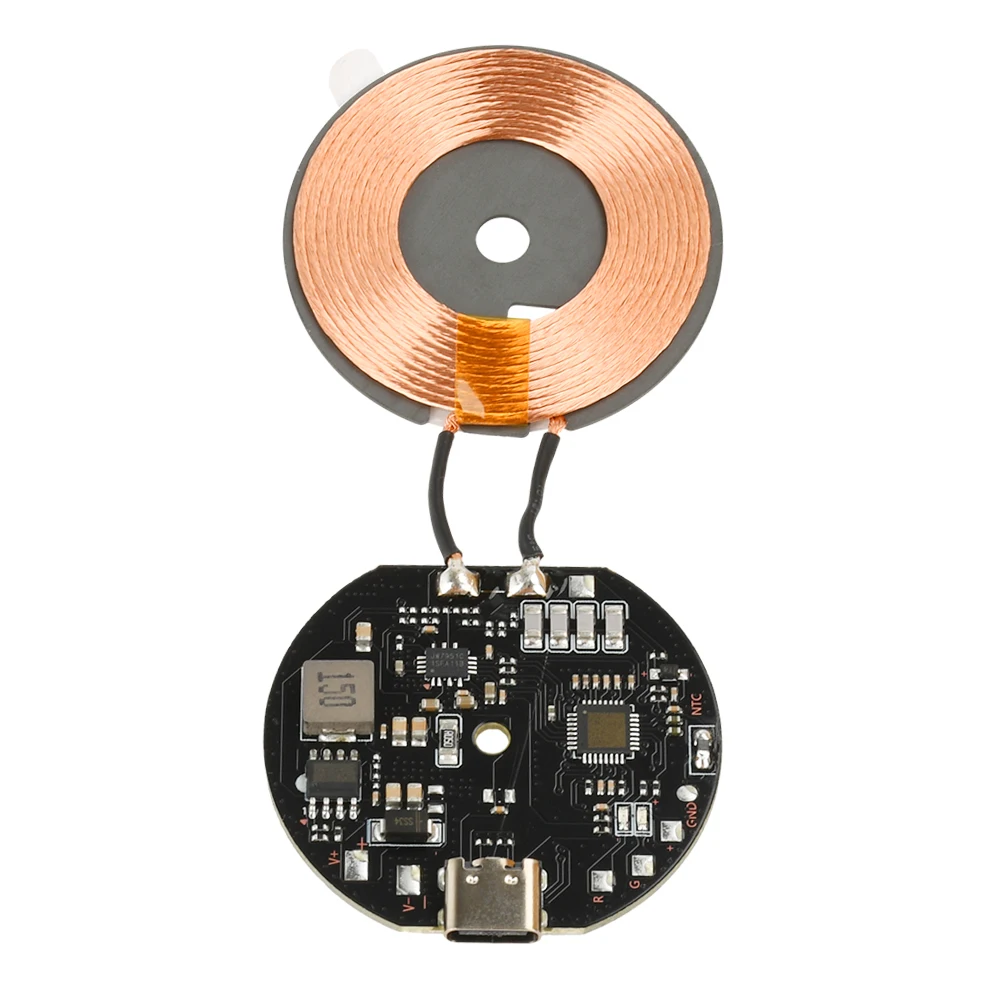

Coil size: diameter 43mm; thickness 1.5mm

Circuit board size: diameter 43mm; thickness 4.5mm

Attention: The received power mainly depends on the protocol opened by the phone. Apple phones support wireless charging with a power range of 7.5-10W

Package List:

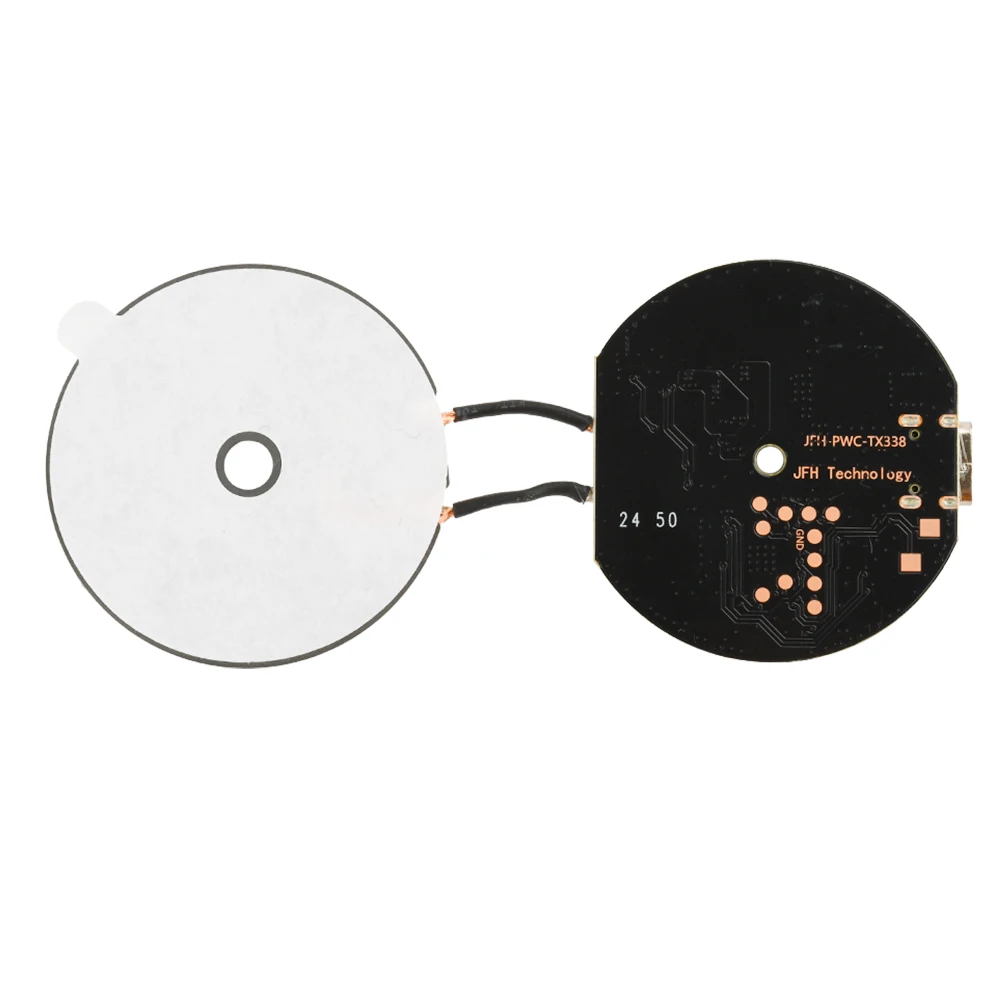

Wireless charging module * 1
