SPECIFICATIONS

Brand Name: gsmjustoncct

Cable-Type: Others

High-concerned chemical: none

Material: Other

Model Number: KM003C

Origin: Mainland China

Pieces Included: 1

Water Resistance Level: Not water resistant

With Magnetic: No

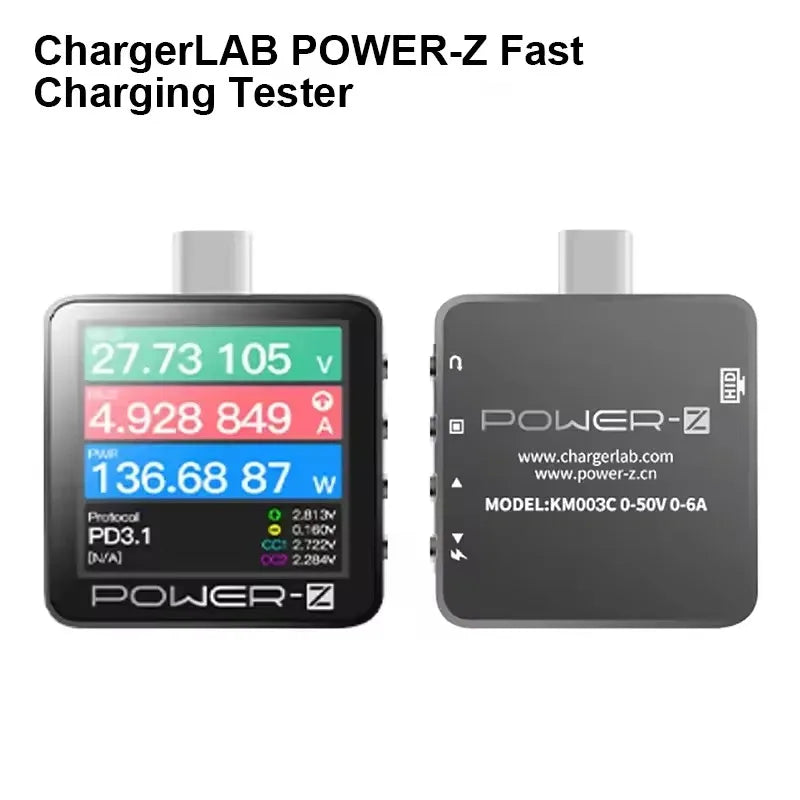

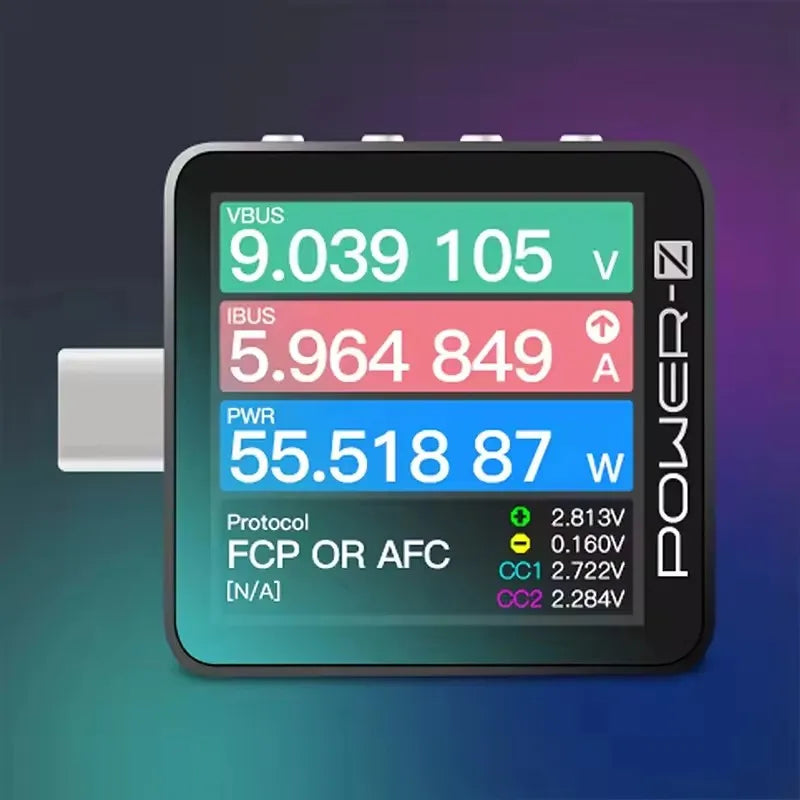

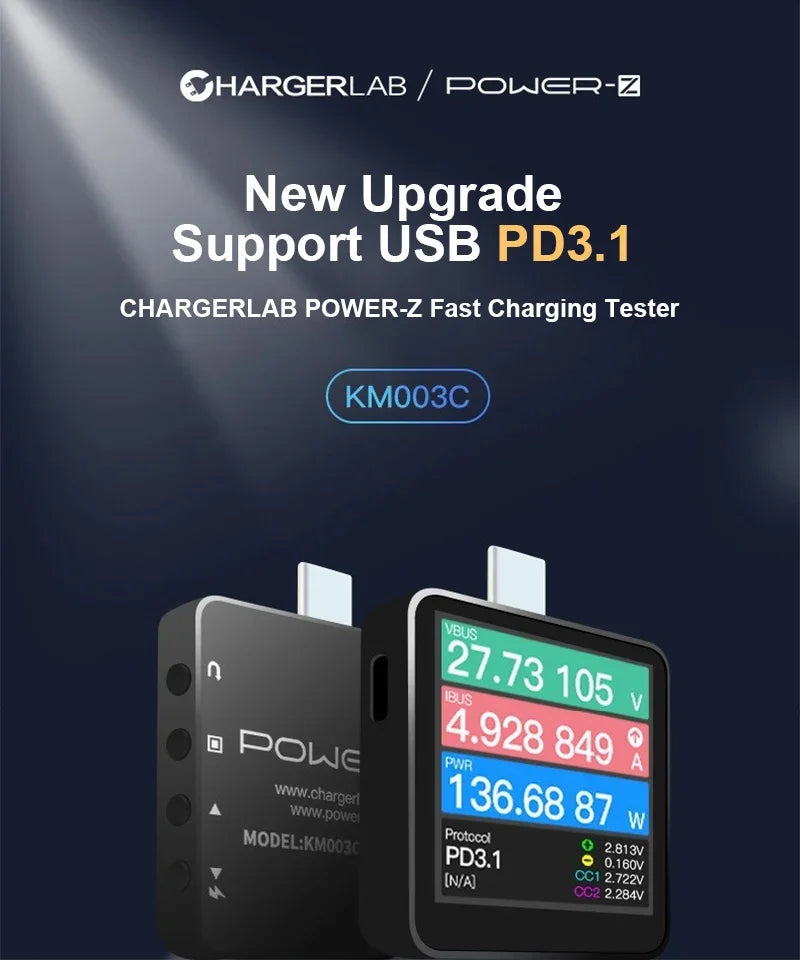

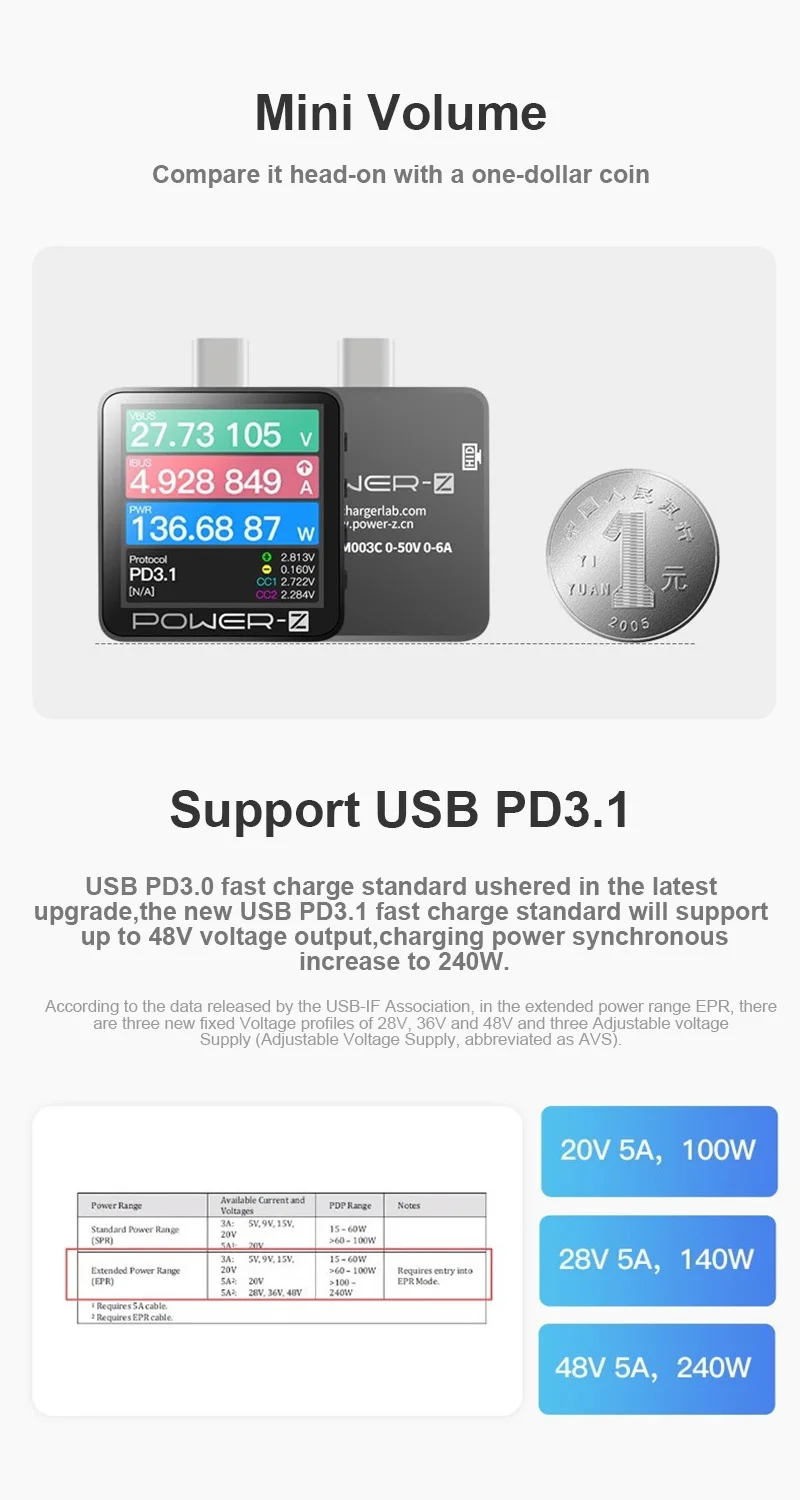

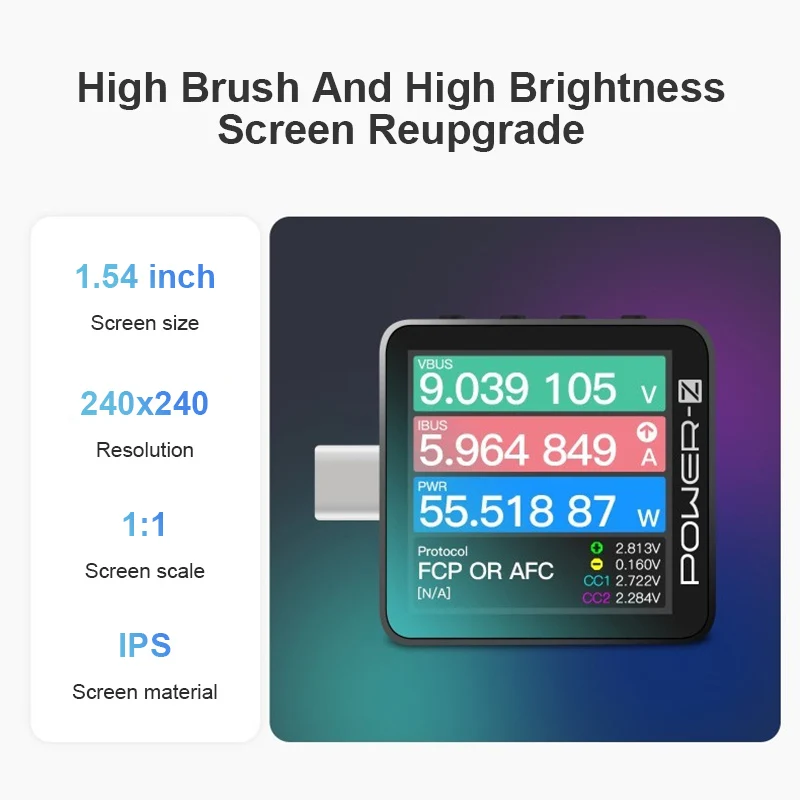

KM003C ChargerLAB POWER-Z USB PD3.1 Protocol PPS 50V 6A Range Dual Type-C USB Capacity Tester

Usage：

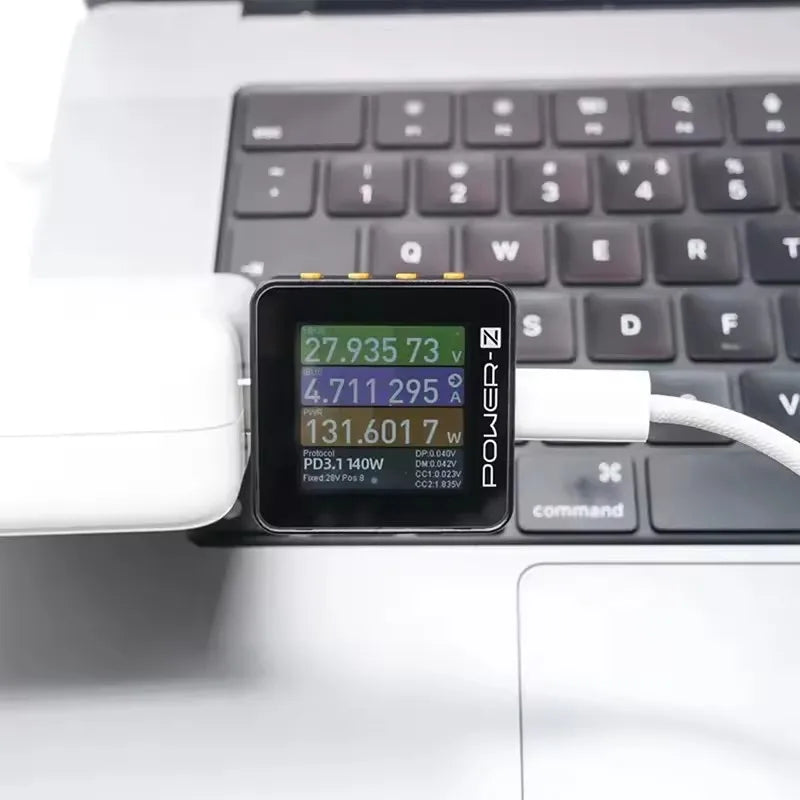

1. Insert the Type-C port of the Power-Z into the charging port of the mobile phone .
2. Insert the original charger into the C port at the bottom of the Power-Z.
3. Turn on the power to start using, easily monitor charging voltage, current, power and other data.

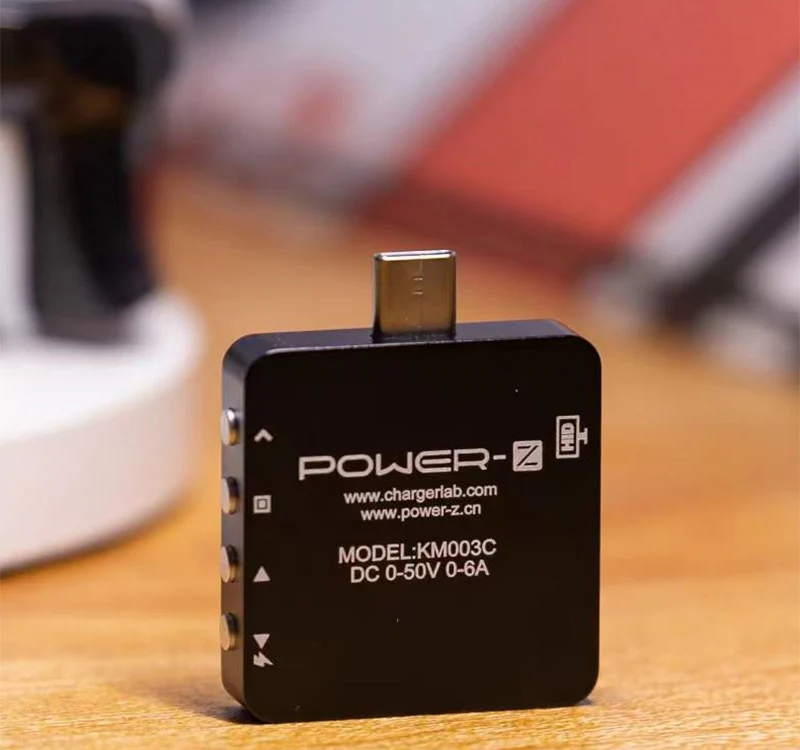

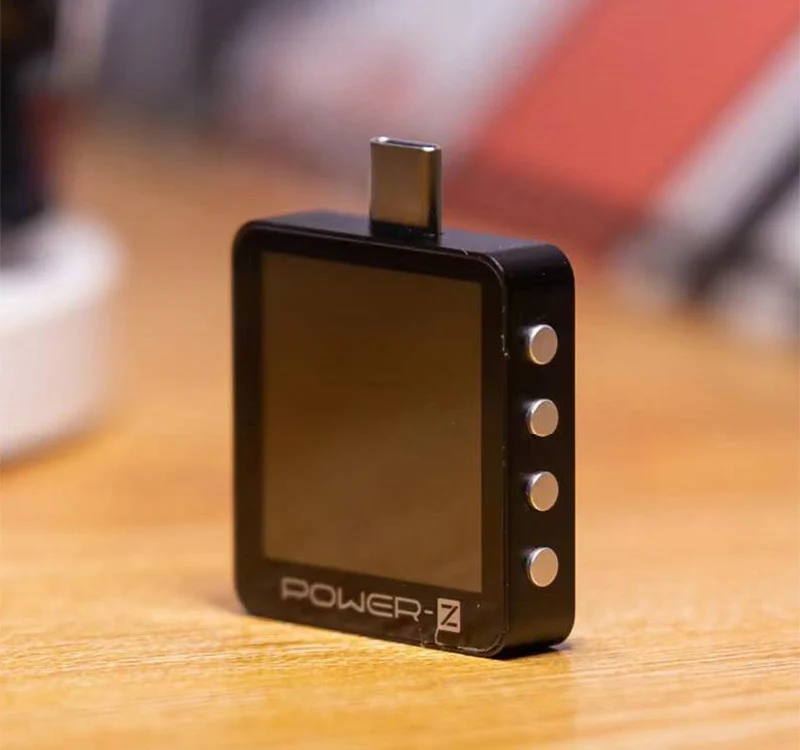

“Key Description” (top to bottom)：

Button 1: Return, the main interface adjusts the text display direction
Button 2: OK, the main interface adjusts the data refresh frequency
Button 3: Previous page, the cursor moves up
Button 4: next page, cursor down

Precautions：

1. The QR code manual will appear when you turn it on for the first time, you can choose to skip it and go directly to "Start Using"
2. The current firmware version is a test firmware, there are some small bugs that do not affect the use, please forgive me. Some unfinished functions and problems will be added and fixed in subsequent updates.

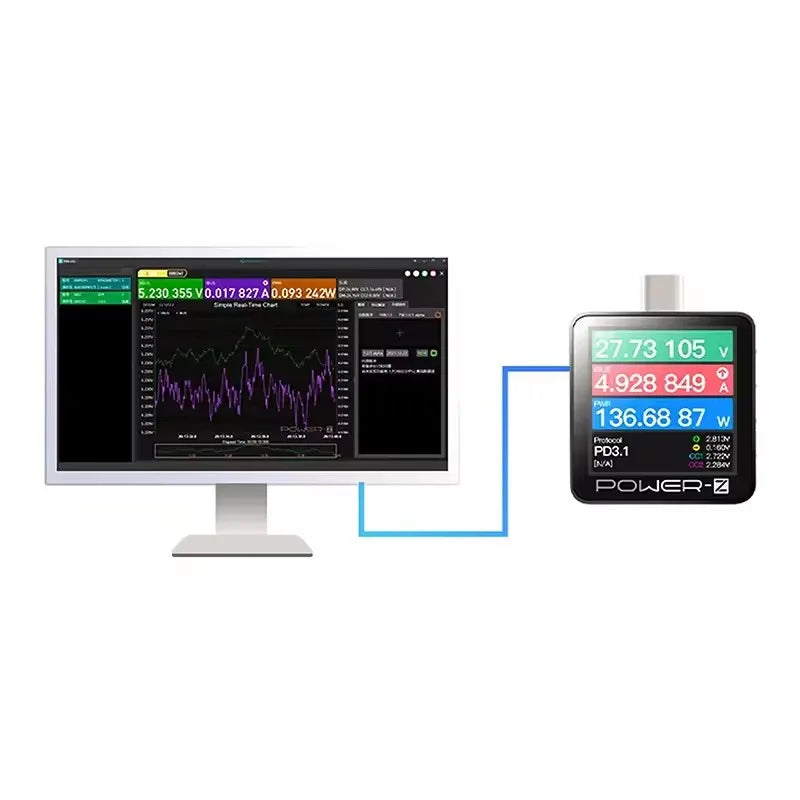

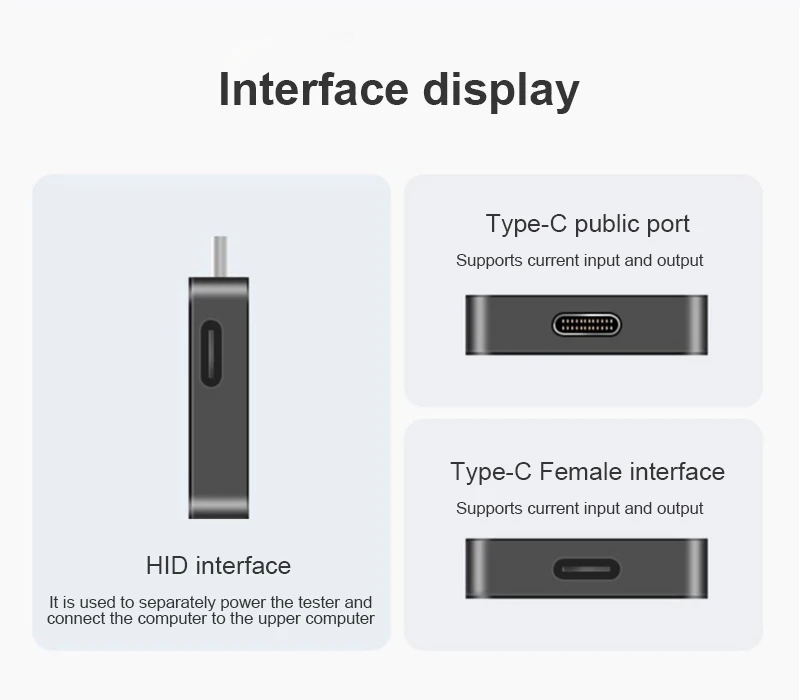

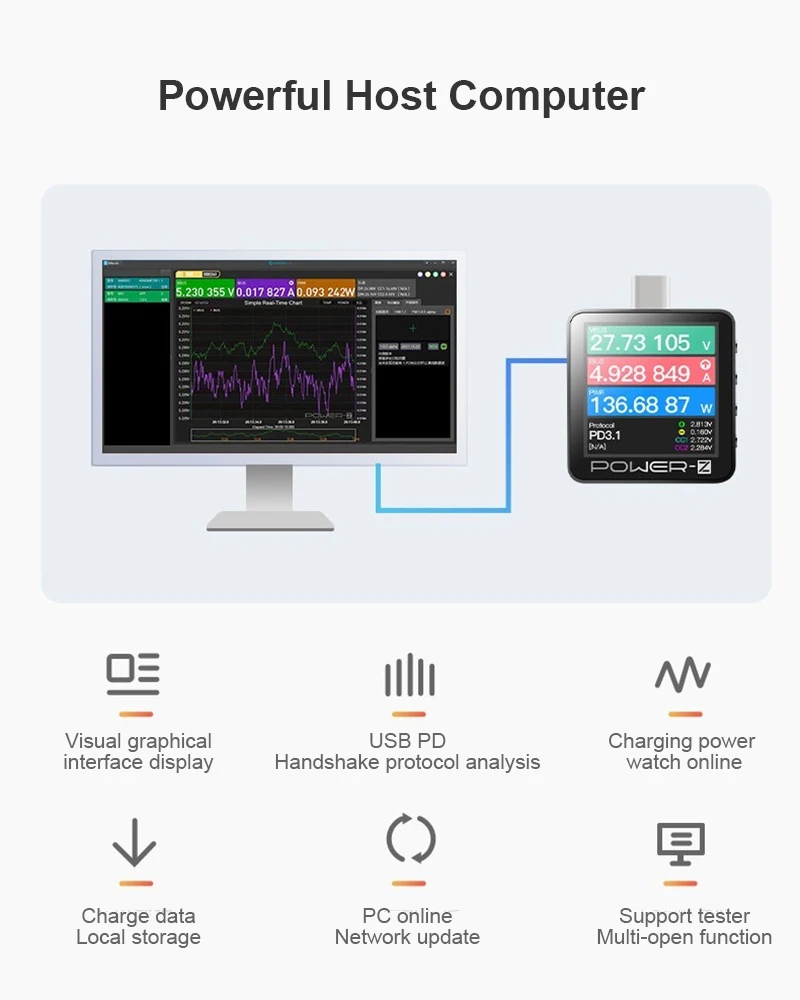

3. HID is a data interface, which is used to connect the host computer and PC suite (for Windows only), and can be powered by 5V during testing, which is more stable.
4. The official version of the manual will be updated synchronously with the official firmware
