SPECIFICATIONS

AC/DC Range: DC<75V

Brand Name: NONE

Certification: CE

Choice: yes

High-concerned chemical: none

Model Number: wireless power management module

Origin: Mainland China

Product Overview:

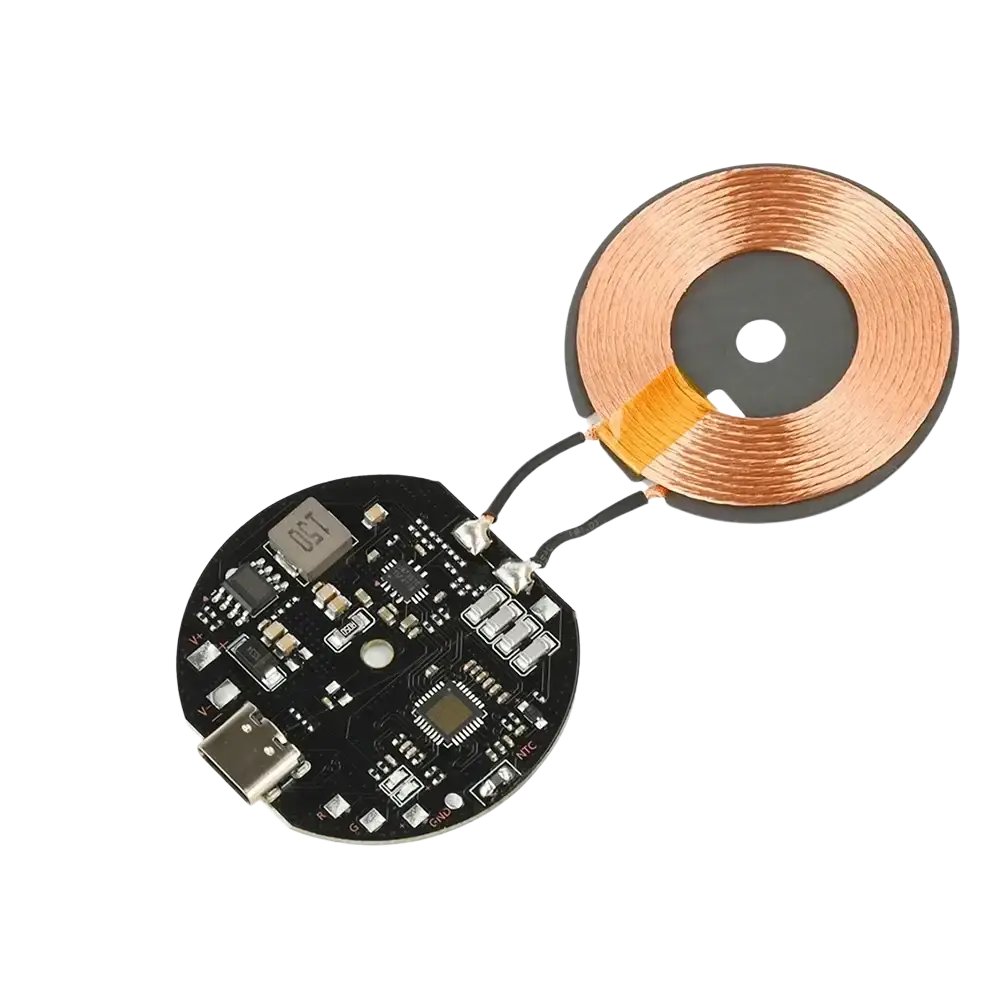

This wireless charging module provides reliable power management and supports automatic recognition of different power levels to ensure efficient and safe charging. Designed for diverse applications, it suits both small and large vehicles without requiring additional voltage regulators.

Key Features:

• Constructed with high-quality PCB materials for durability and extended product lifespan.
• Compact and aesthetically arranged components for a refined appearance.

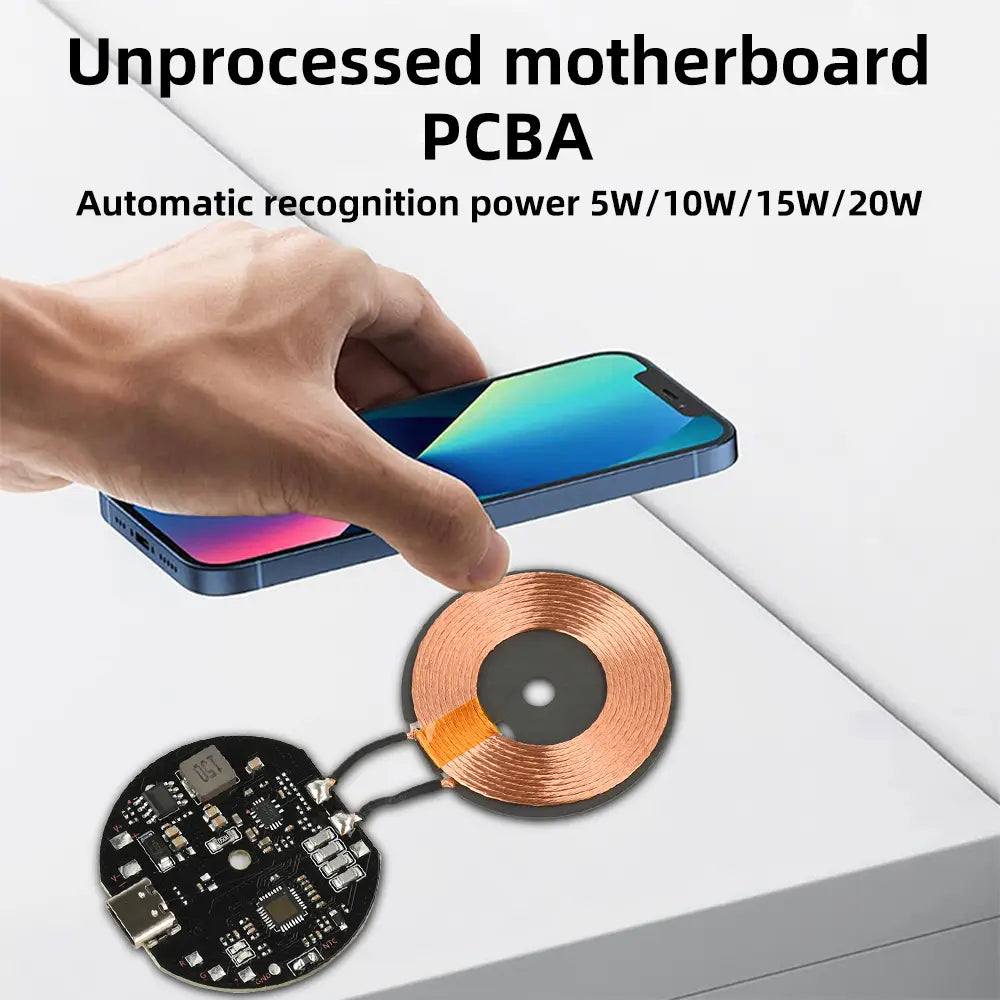

• Stable performance with automatic recognition of wireless charging power levels at 5W, 10W, 15W, and 20W.
• Equipped with four protection features: overcurrent, overvoltage, overtemperature, and short circuit, along with foreign object detection (FOD) for enhanced safety.

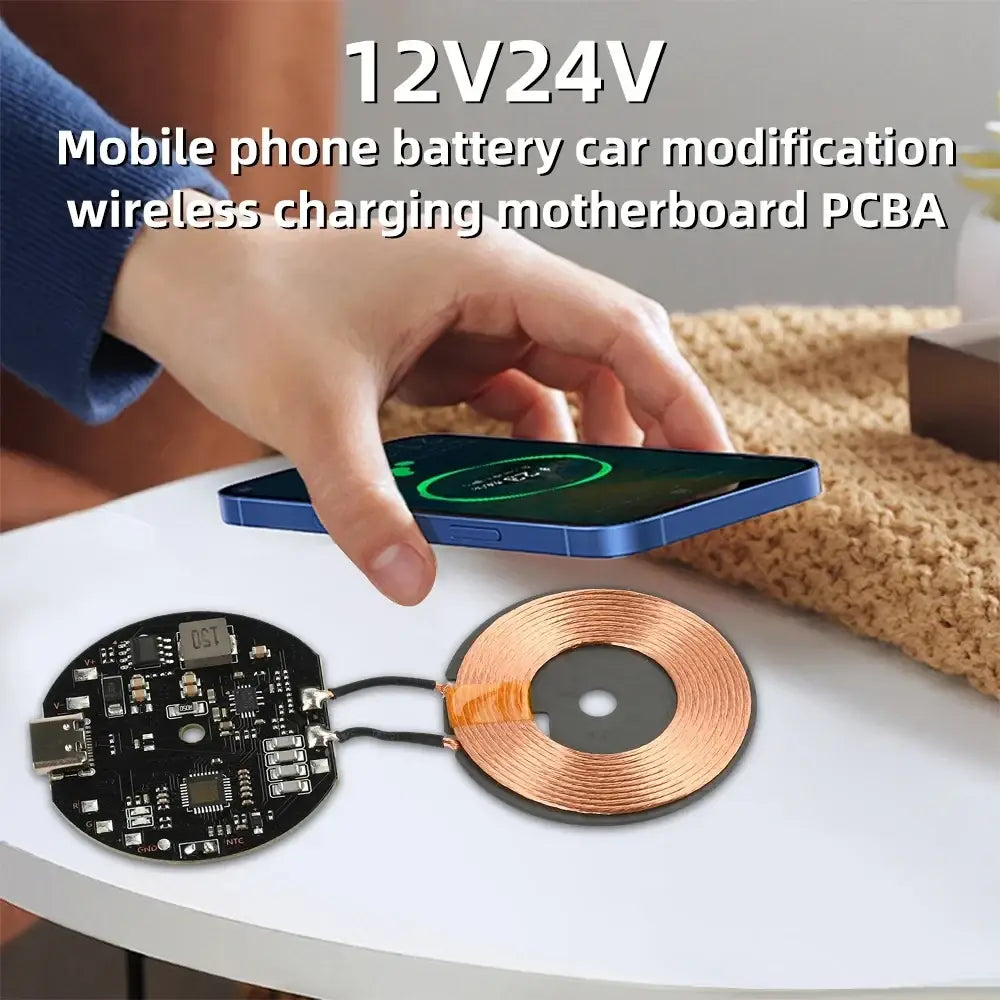

• Wide-ranging compatibility allowing direct use in 12V small cars and 24V large trucks without additional voltage adaptations.

Technical Parameters:

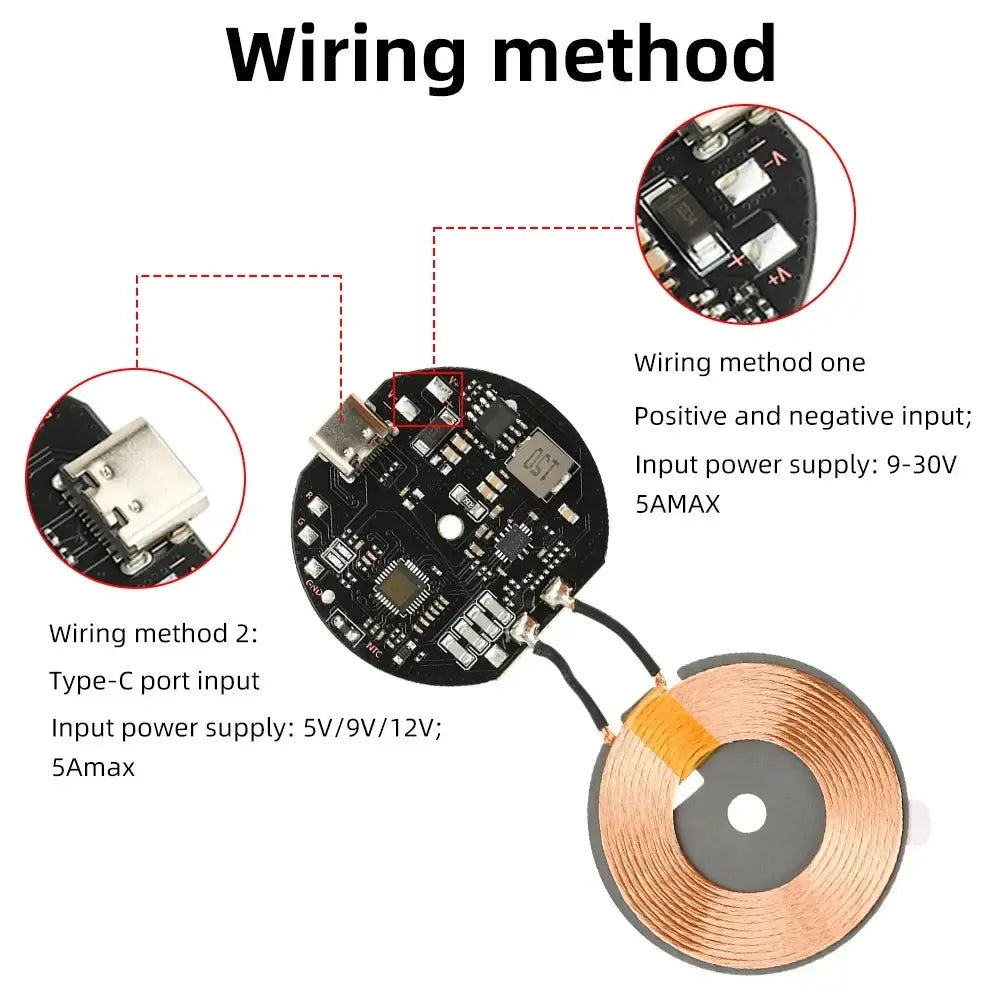

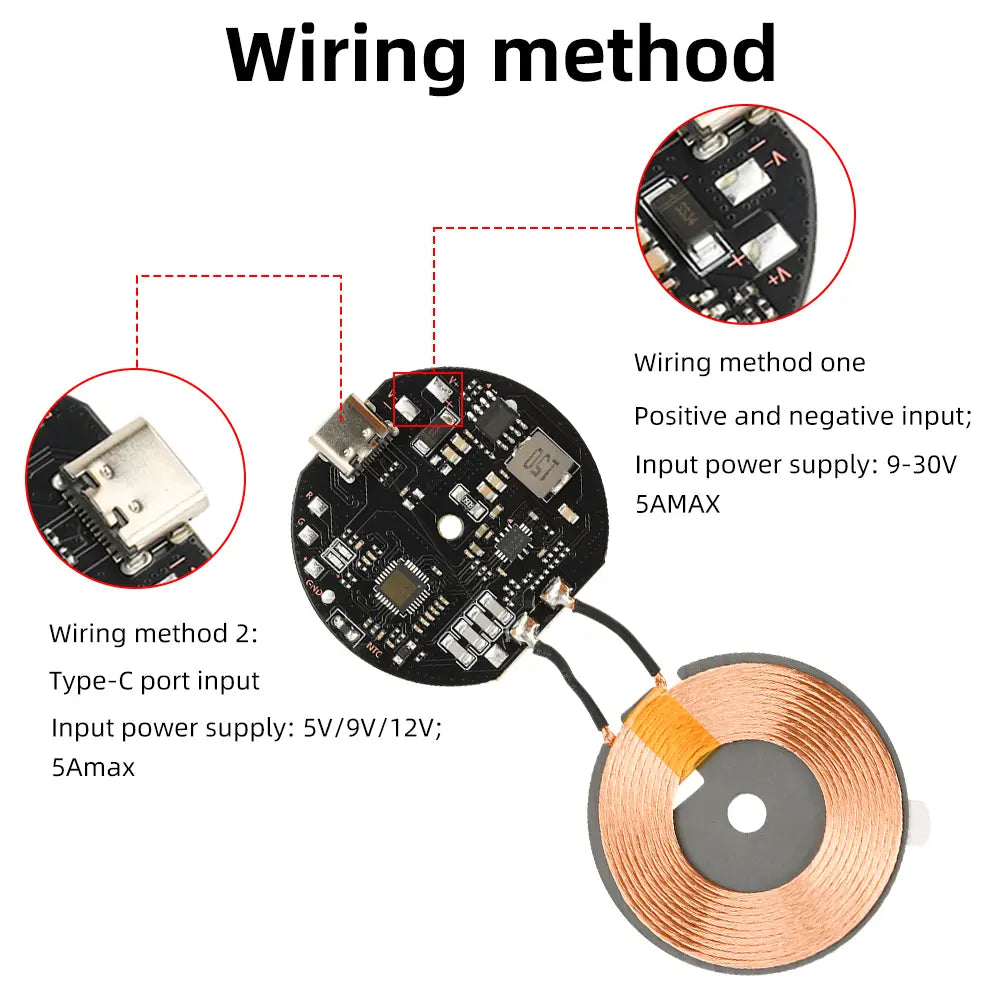

Input Voltage:

Type-C port: 5V/9V/12V/QC/PD charging head

Welding wire: 9V-30V (suitable for direct vehicle connection)

Output Power:

Input 5V, output 5W (Max)

Input 9V/12V-30V, output 5W/10W/15W/20W with automatic recognition

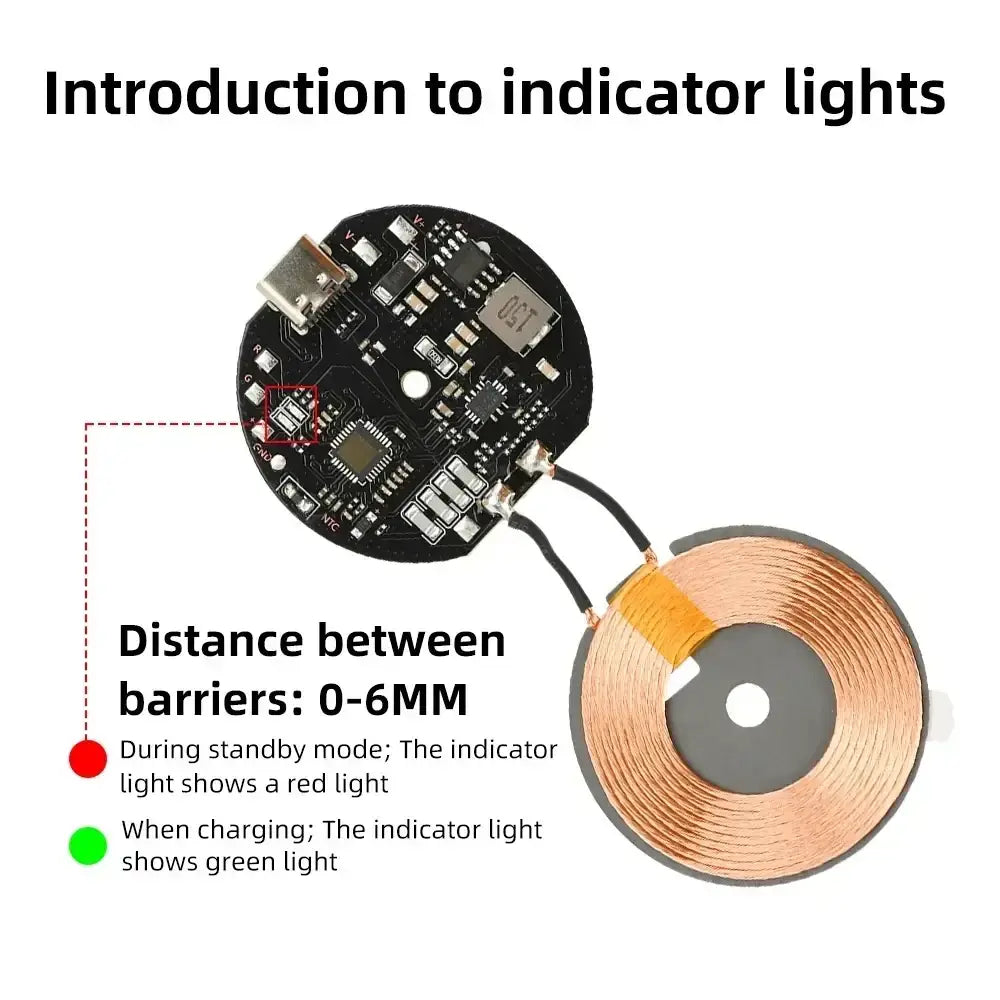

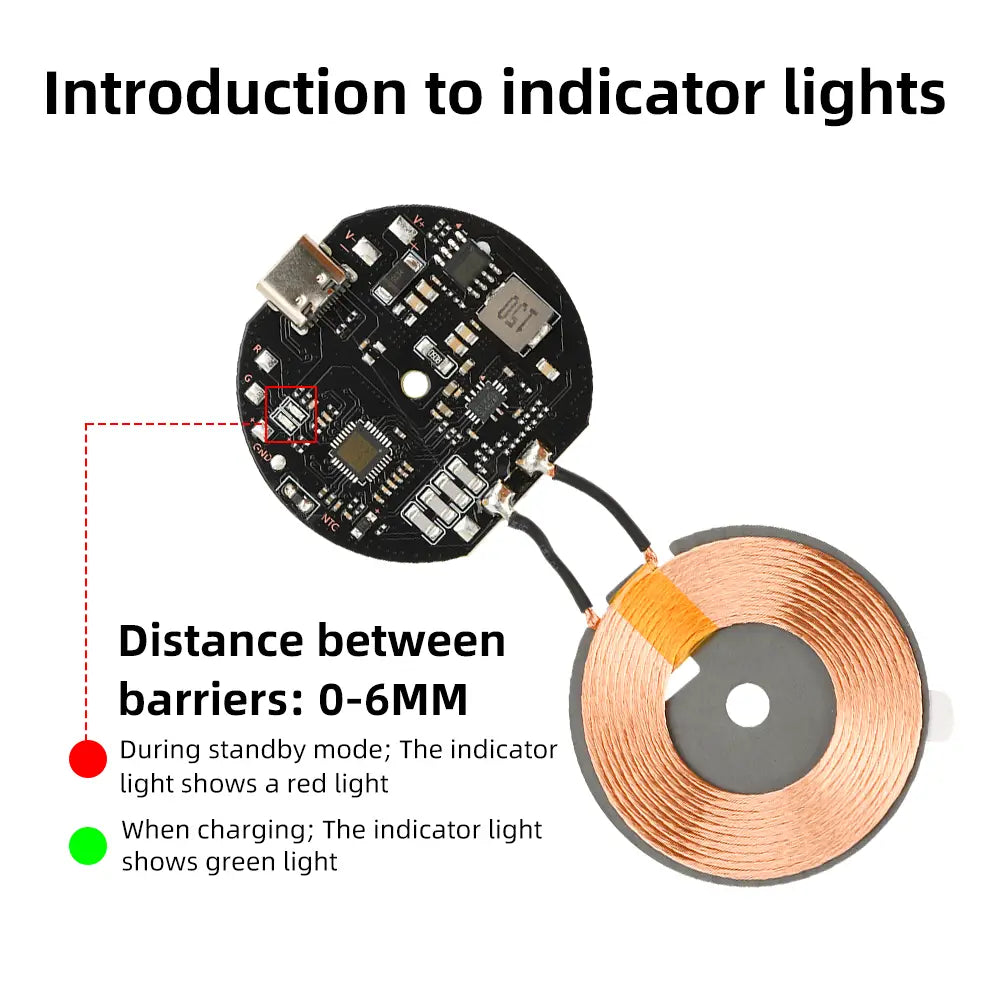

Sensing Distance:

Barrier: 2-6mm

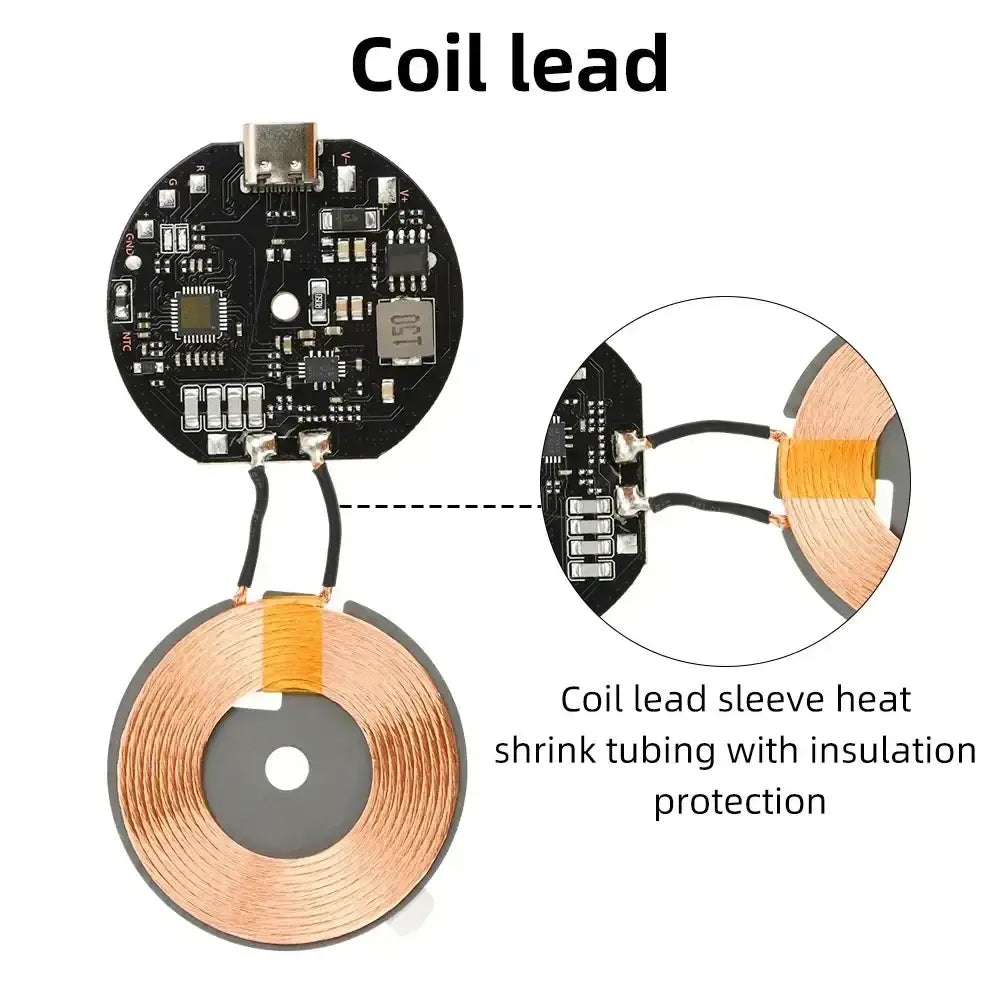

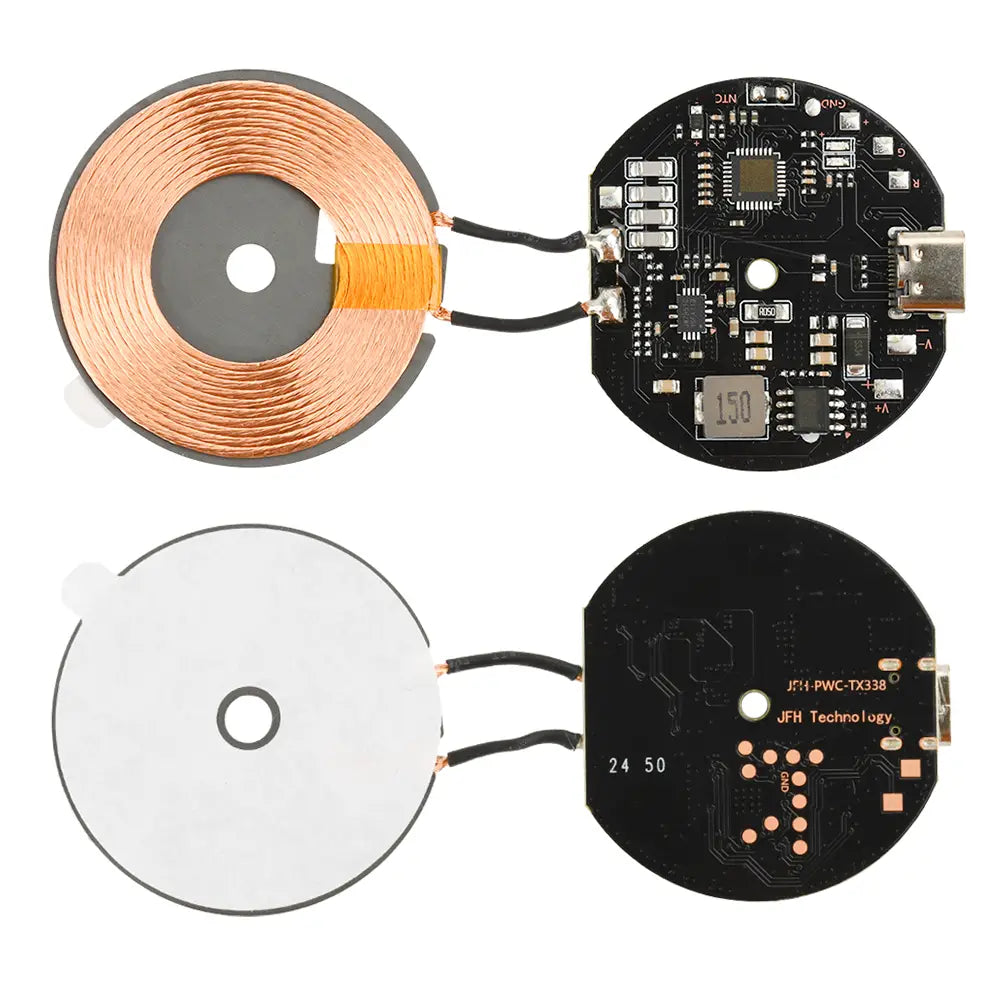

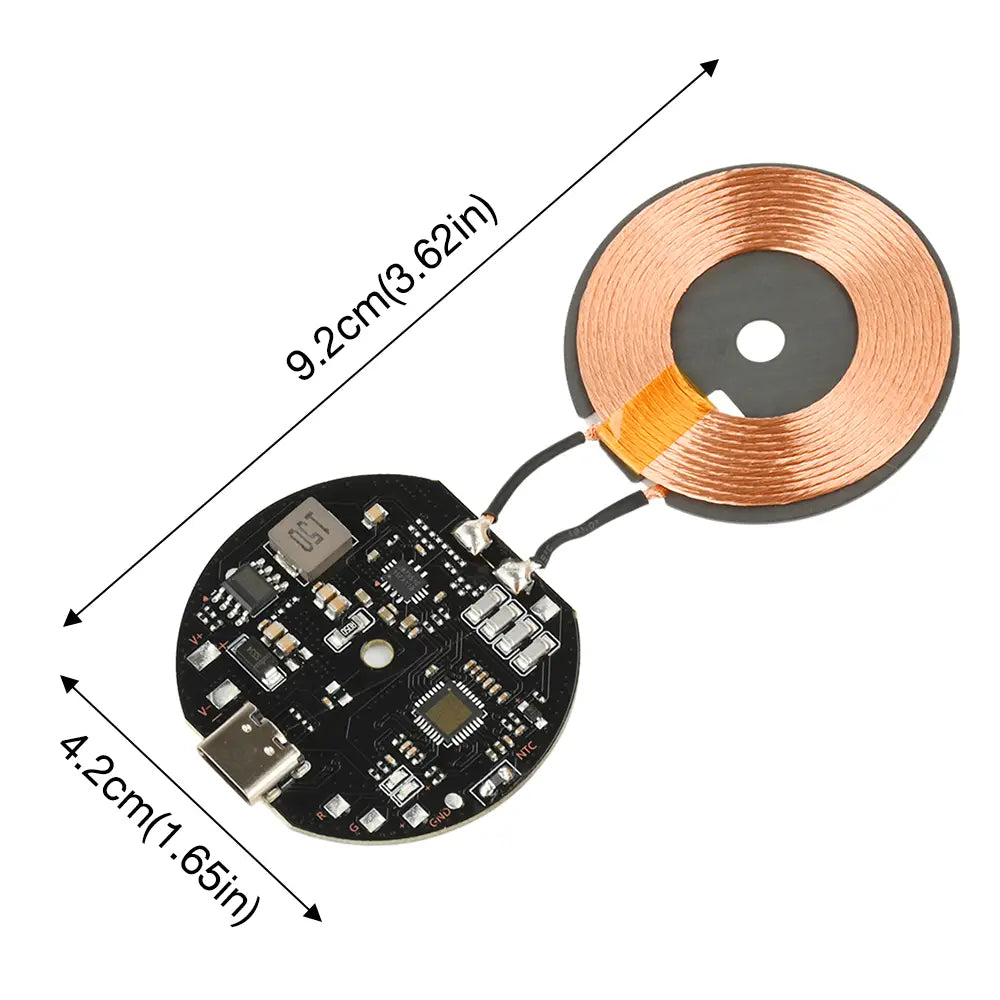

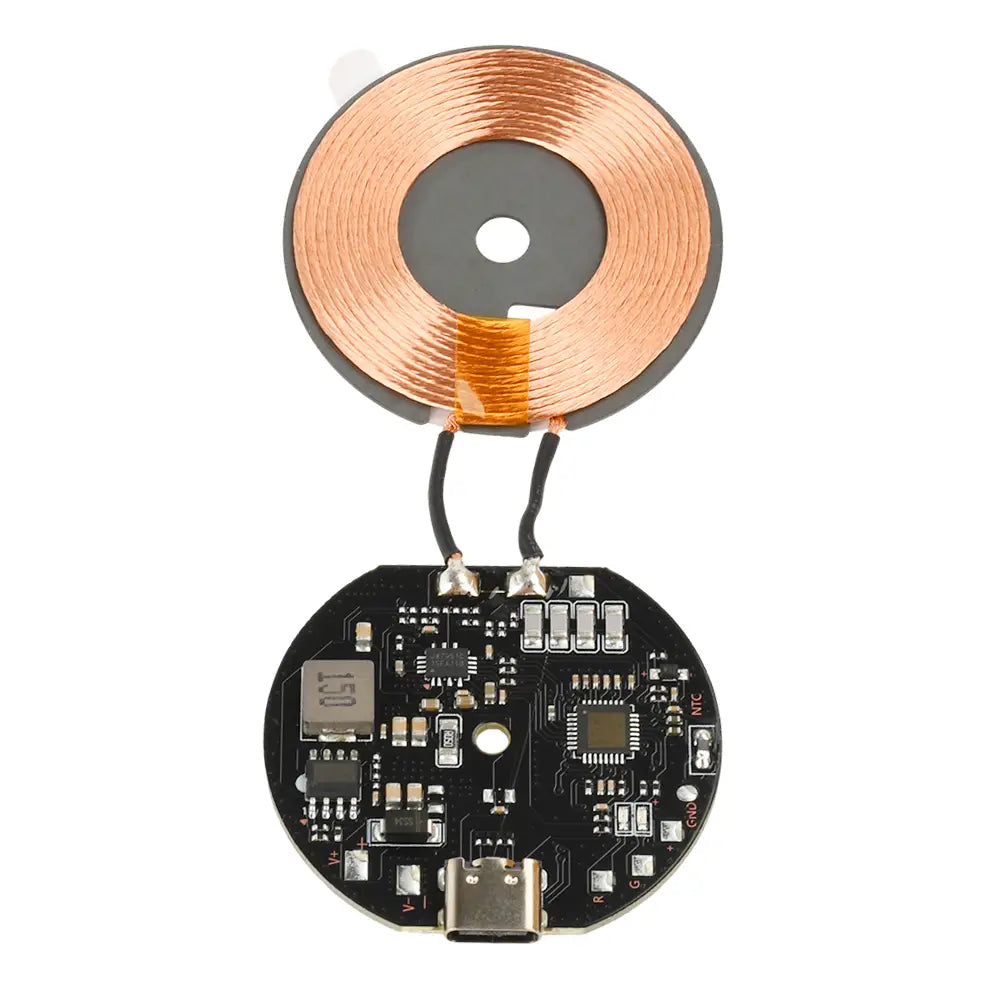

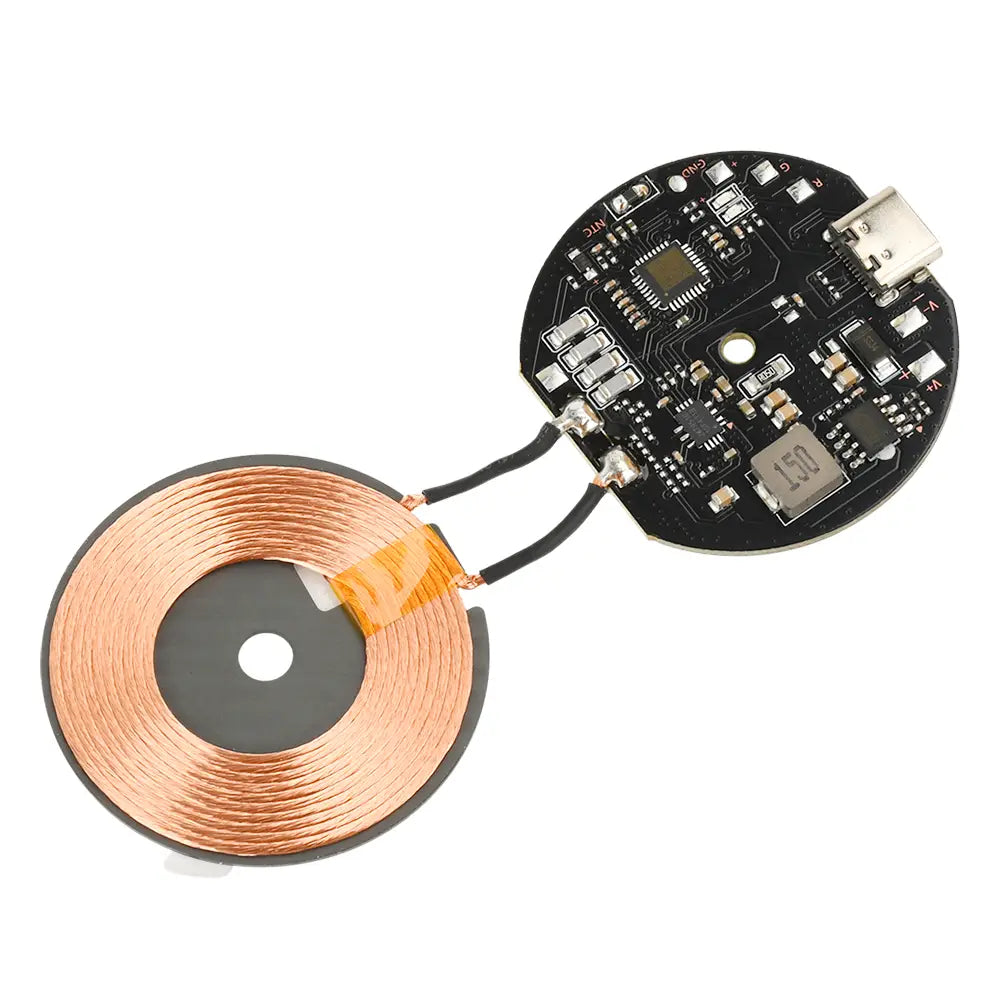

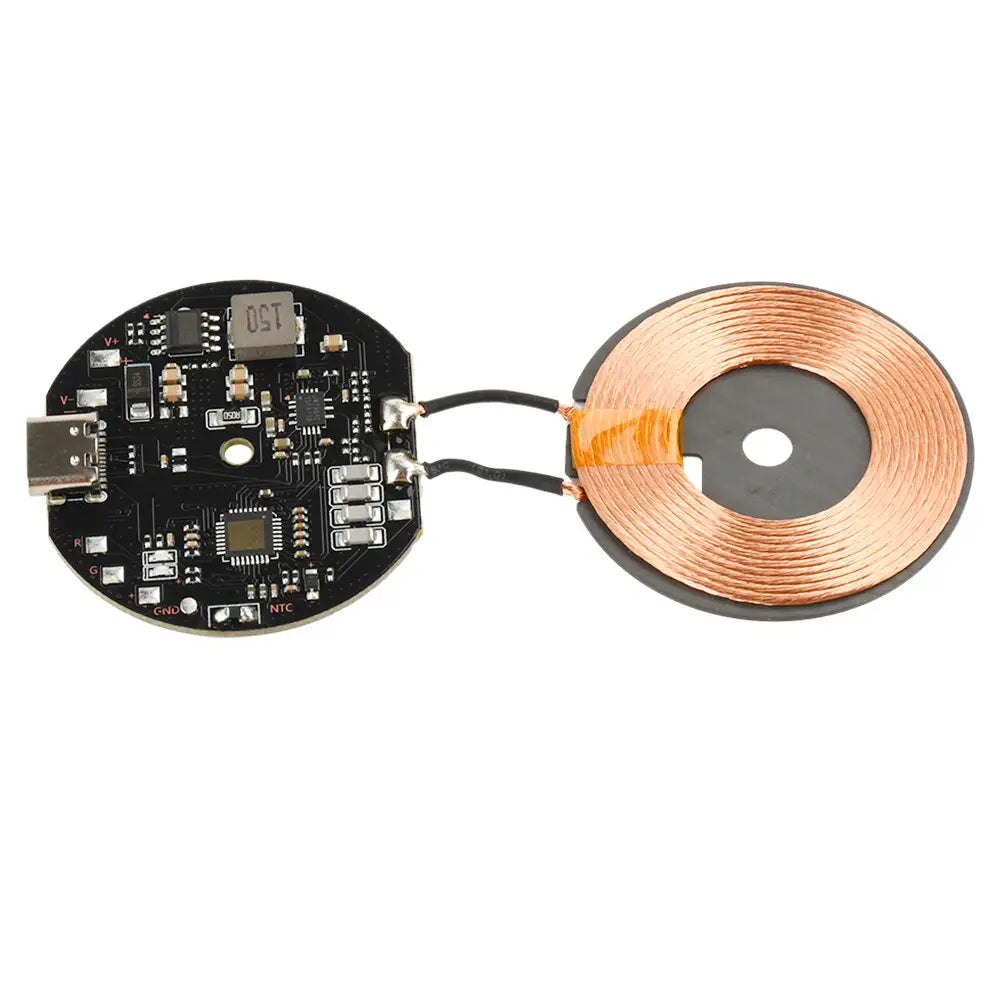

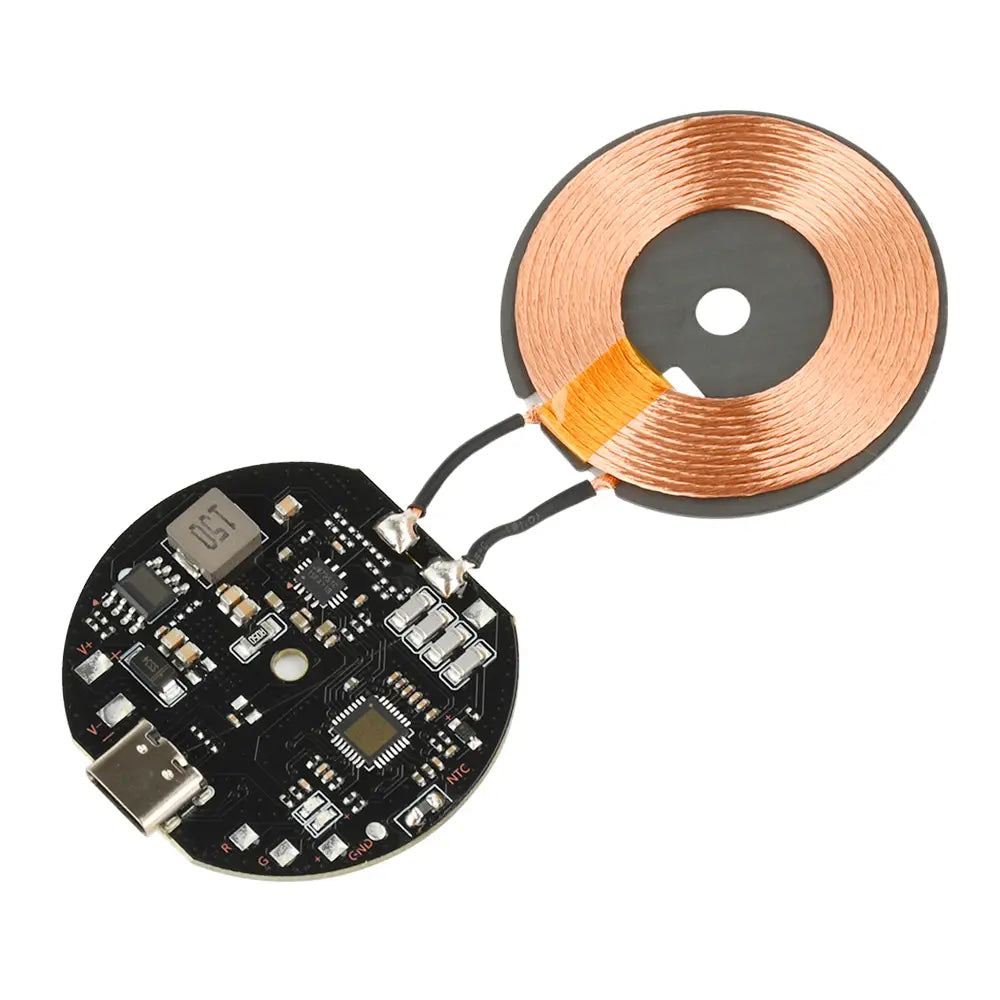

Coil Size:

Diameter 43mm; Thickness 1.5mm

Circuit Board Size:

Diameter 43mm; Thickness 4.5mm

Important Notes:

The charging power received depends mainly on the wireless charging protocol supported by the mobile device. Apple devices support wireless charging in the range of 7.5W to 10W.

Package Contents:

Wireless charging module × 1
