SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

Product Overview

This voltage regulator module is designed for advanced computer applications with an emphasis on efficient power management, including fast charging capabilities and wireless charging integration. It supports various fast charging protocols and provides high current USB outputs for reliable and customizable performance in modern charging environments.

Key Features

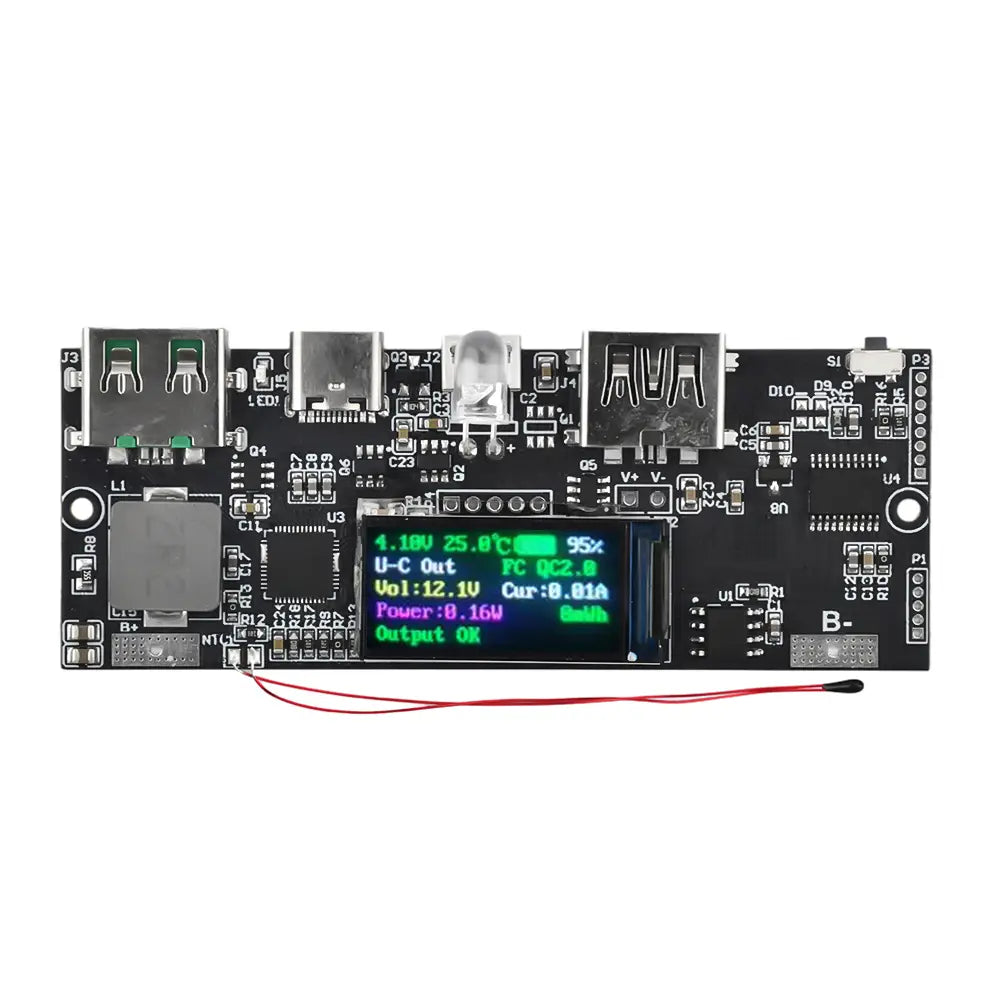

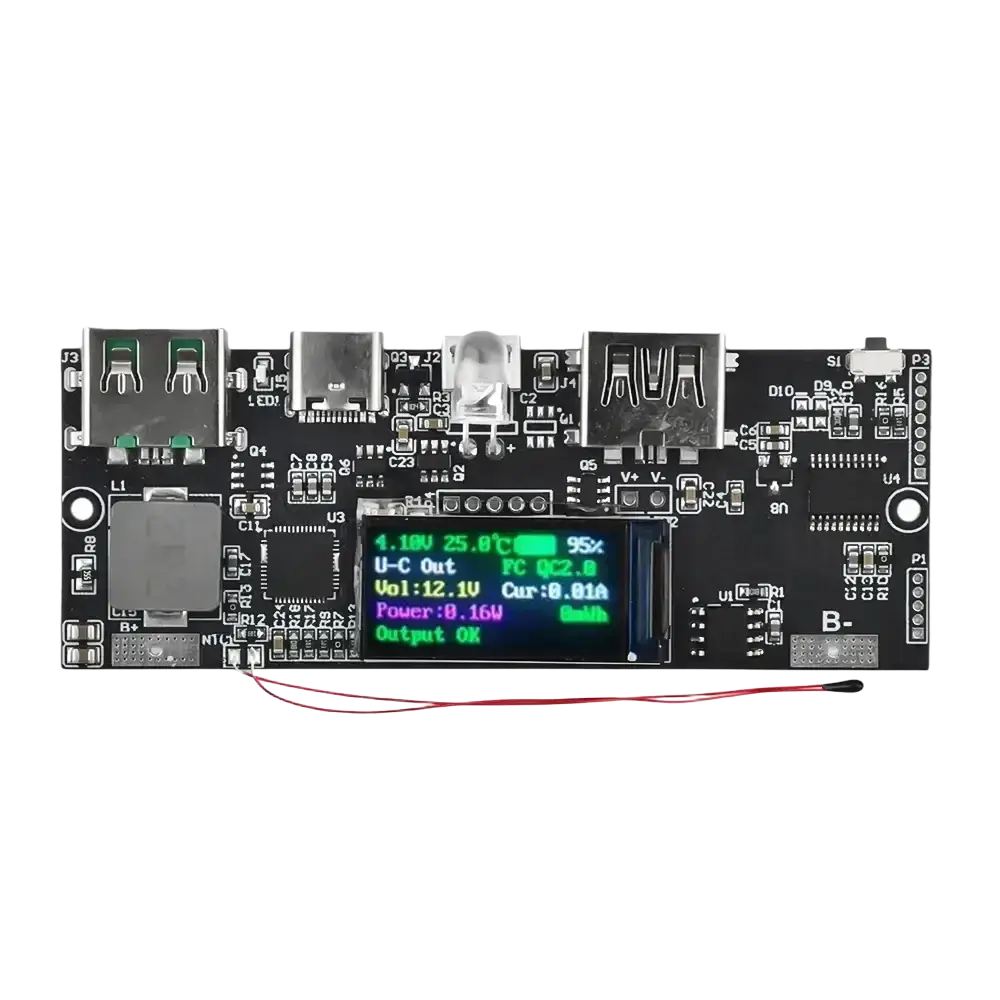

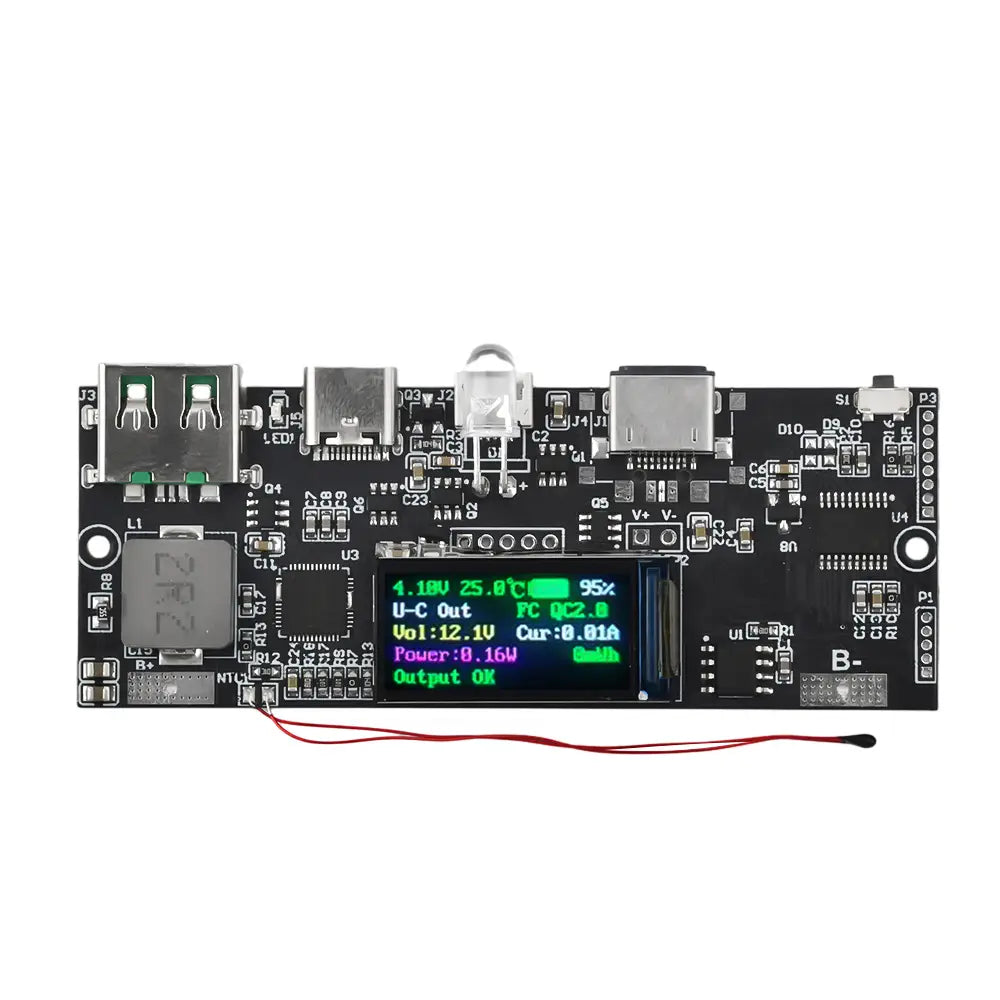

1. Equipped with a color screen display offering three selectable modes for enhanced user interaction and status monitoring.

2. Updated 22.5W program with adjustable maximum output power up to 22.5W ensuring compatibility with multiple fast charging protocols such as SCP, QC, and PD.

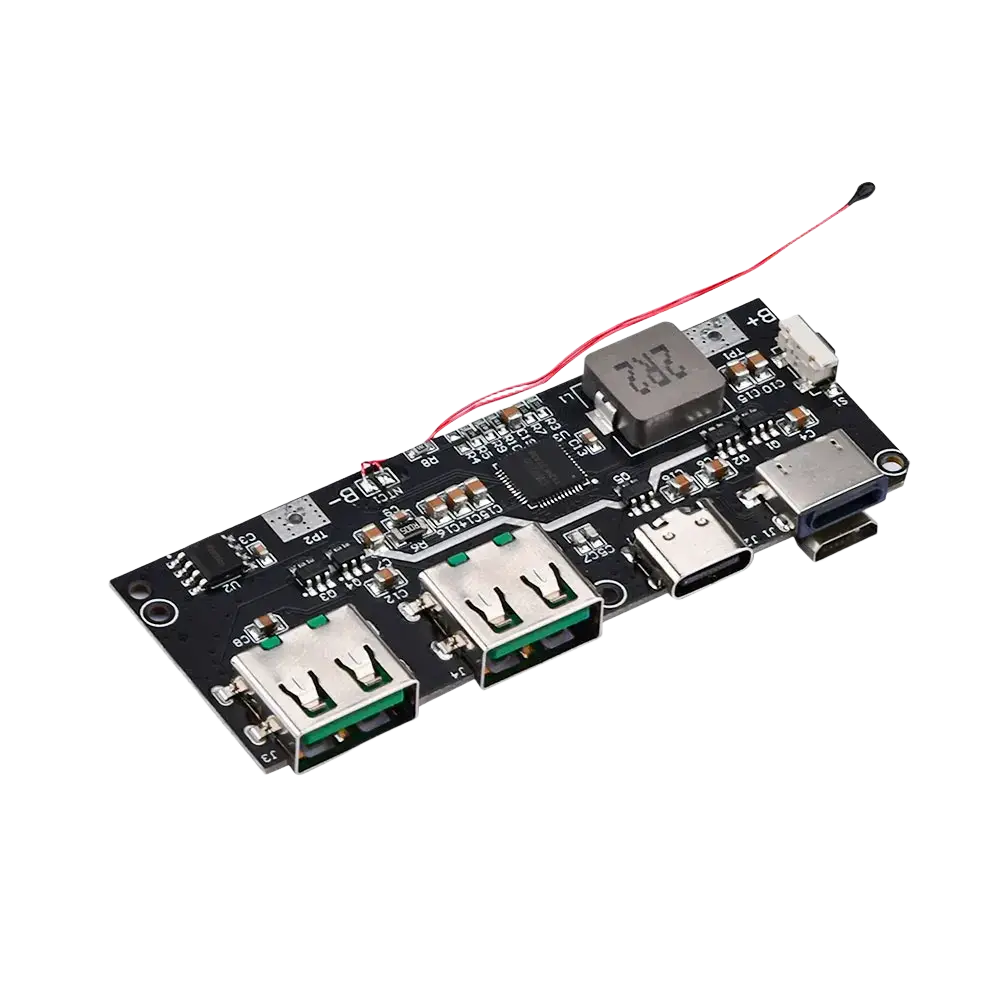

3. Dual Type-A USB sockets use 5P high current USB connectors featuring thicker copper contacts to reduce heat generation and increase overcurrent capacity.

4. Supports high current fast charging output for SCP and VOOC protocols.

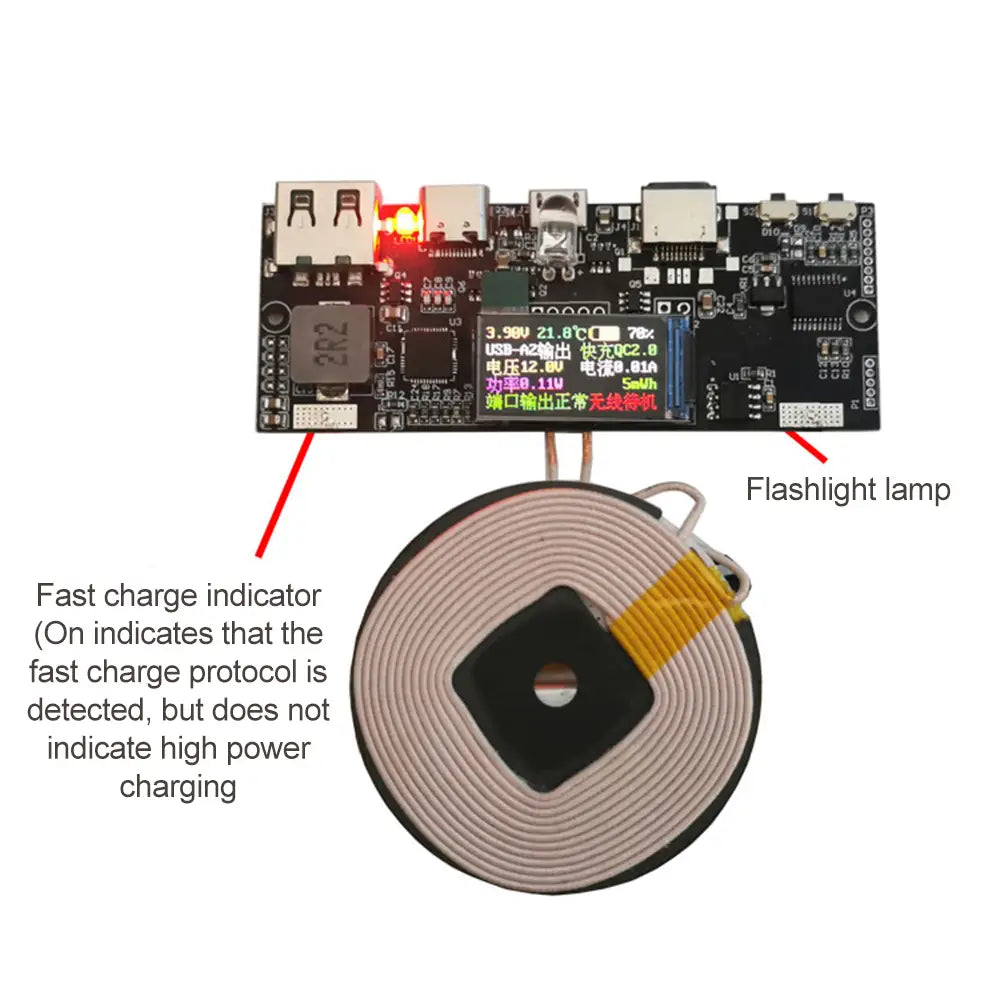

5. Fast charging indicator light confirms protocol recognition, even if full high-power charging is not active.

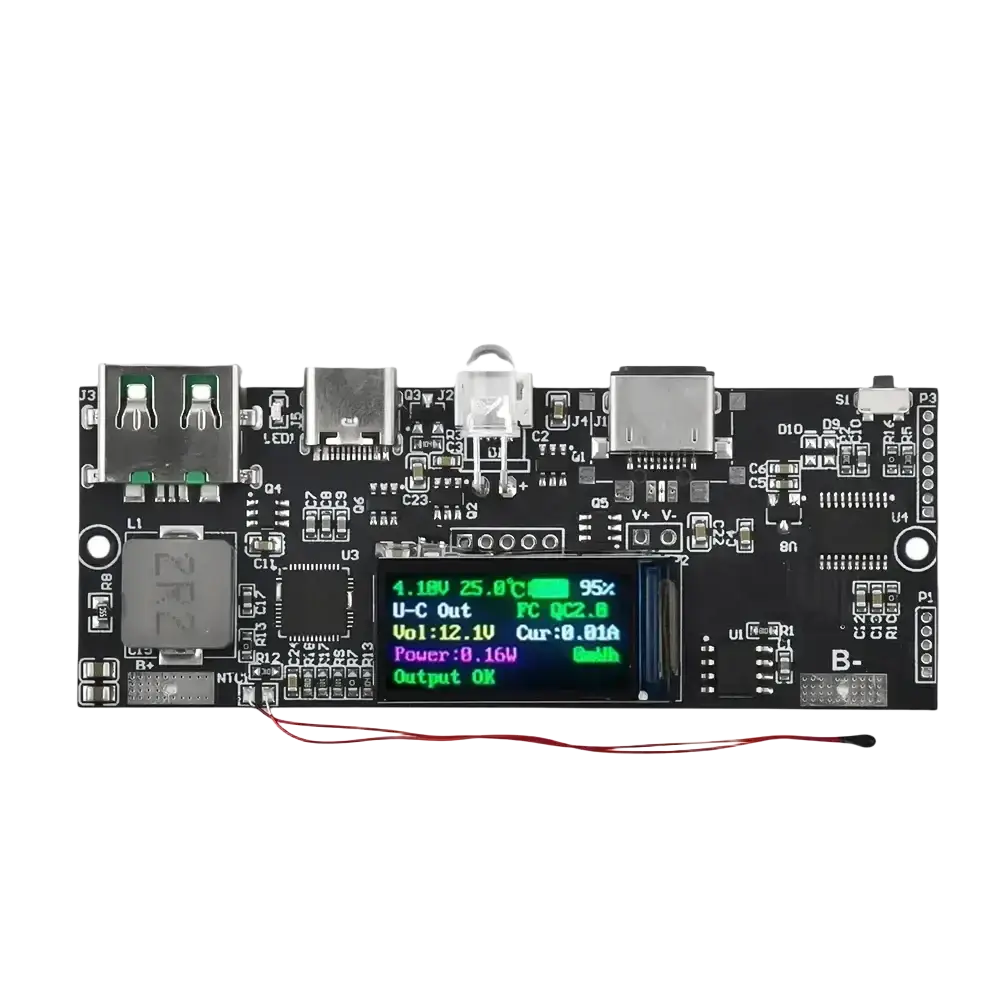

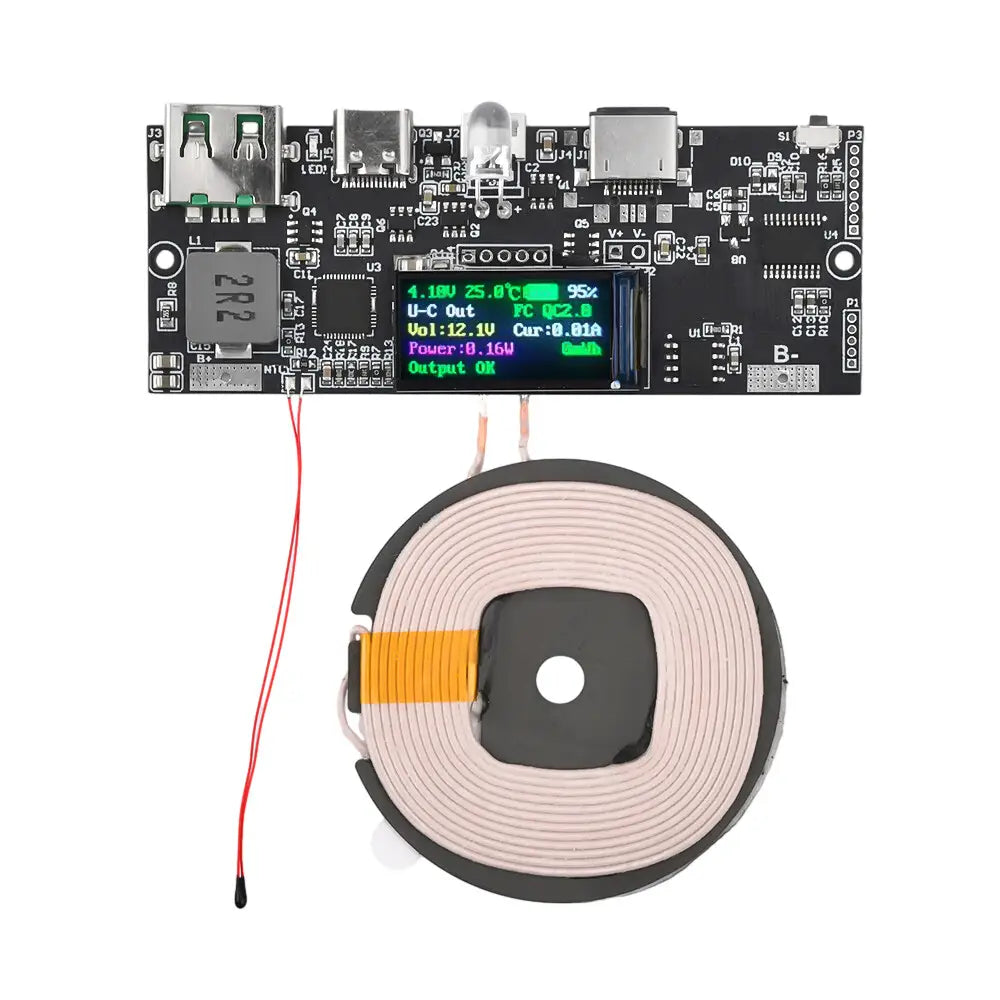

6. First-line screen parameters include battery voltage, external temperature (battery temperature), battery icon, and battery percentage with distinct color changes reflecting voltage, temperature, and charge level.

Technical Specifications

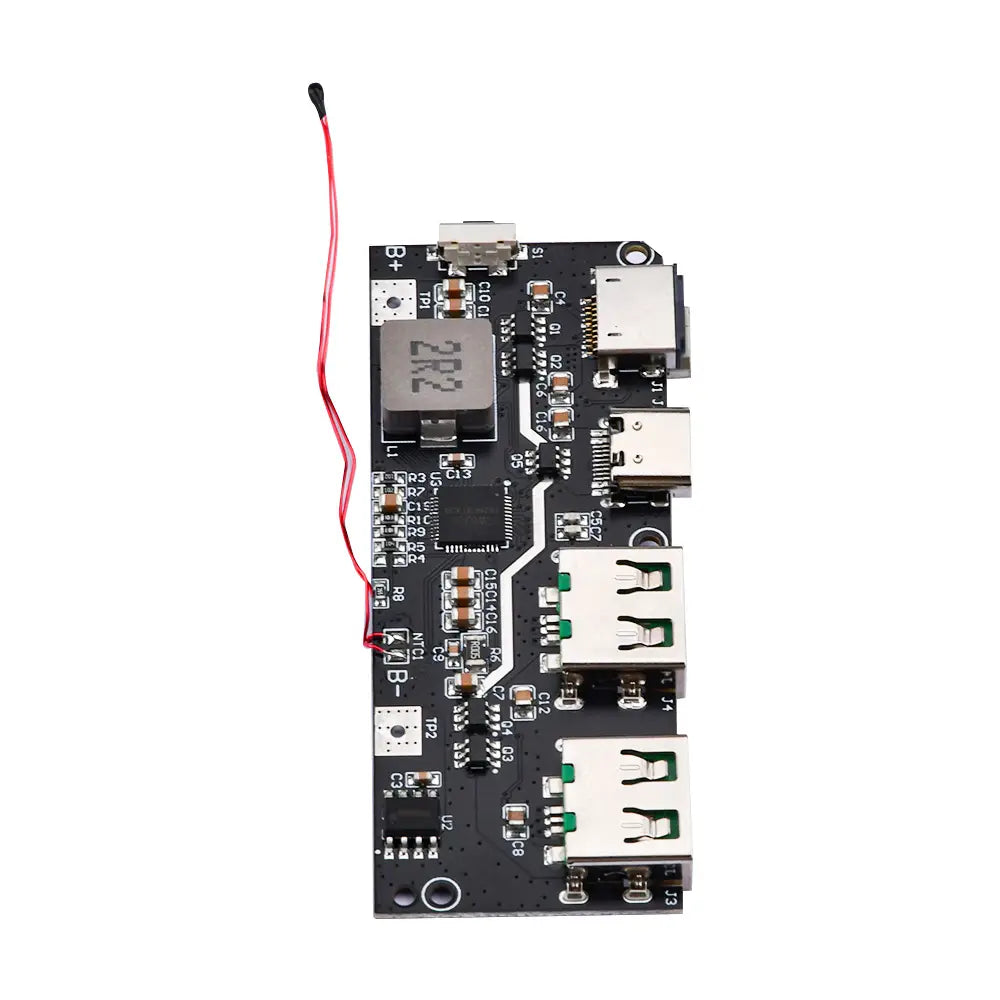

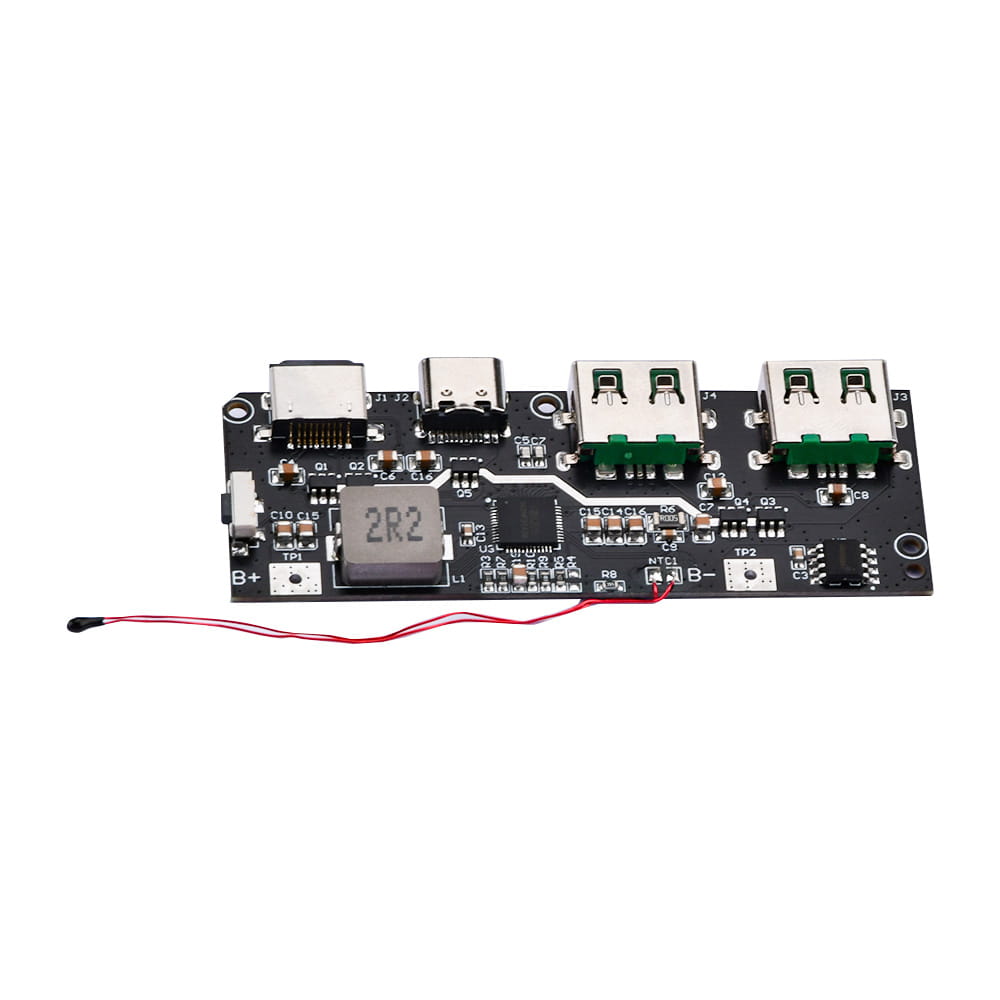

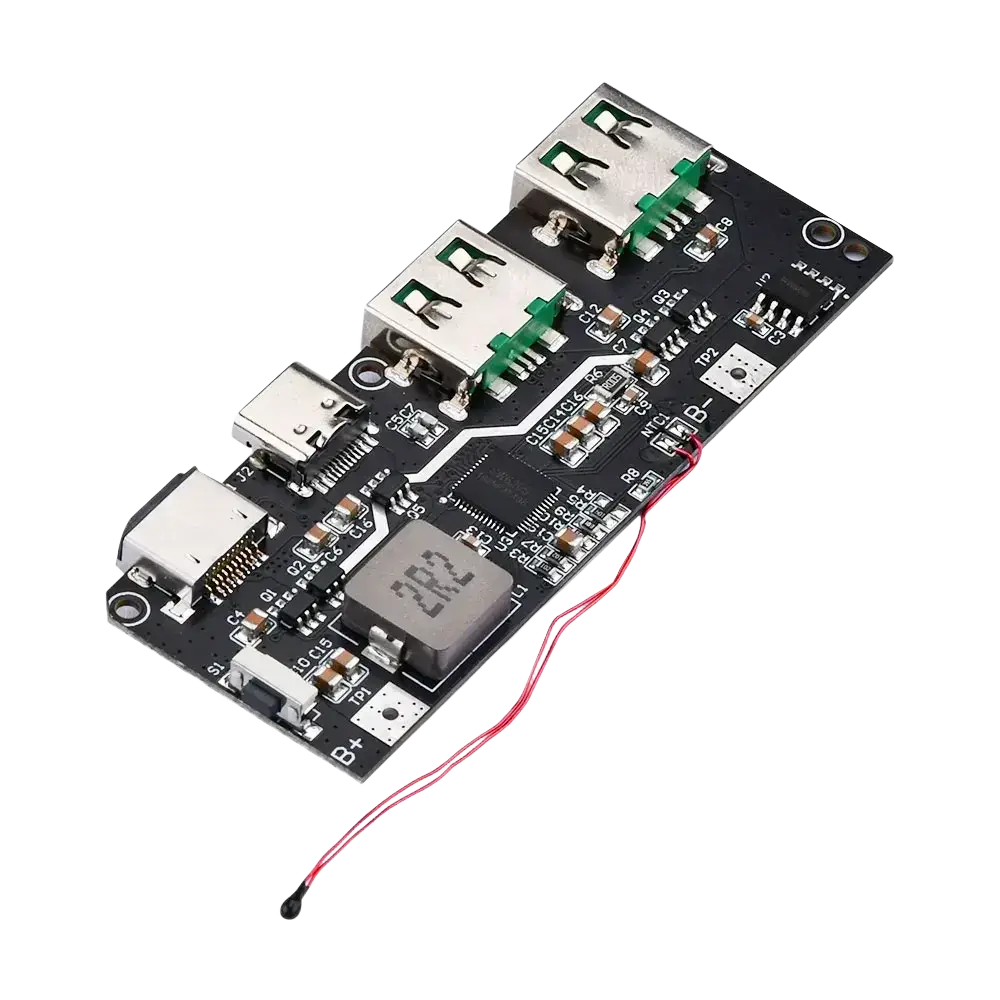

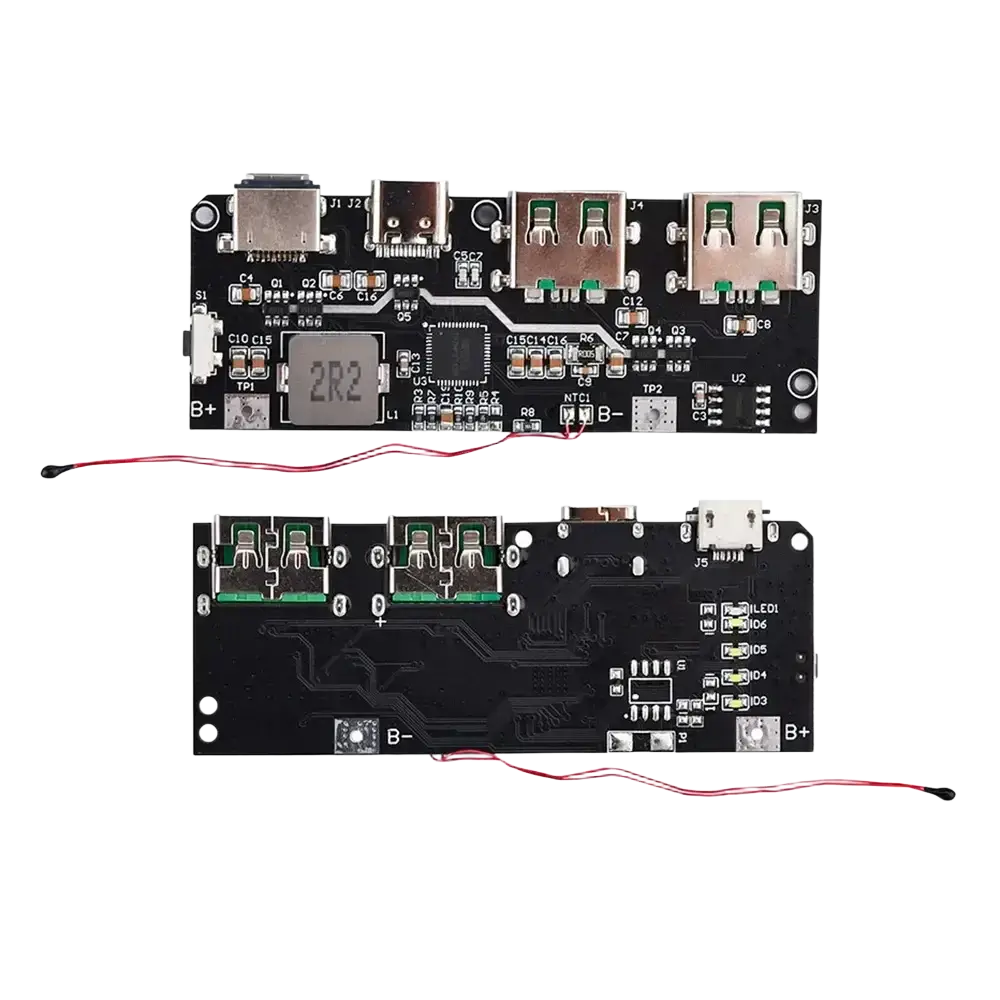

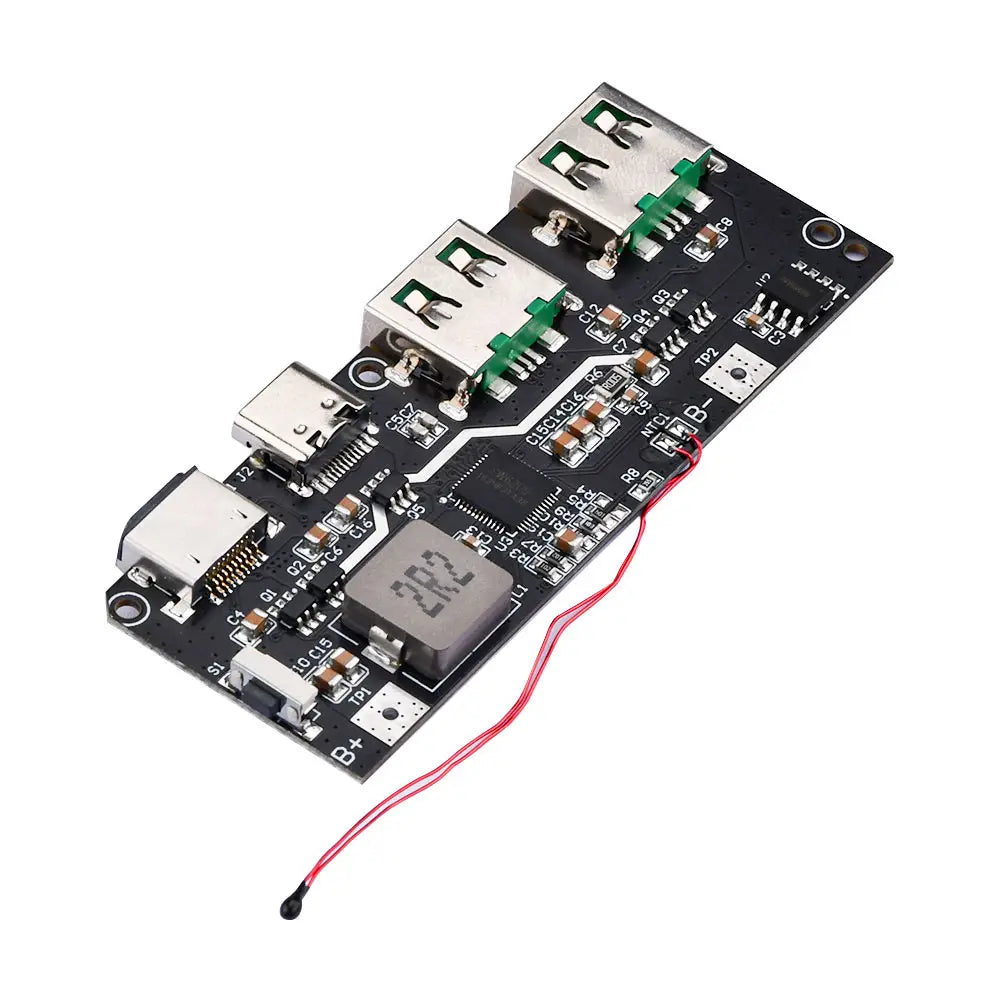

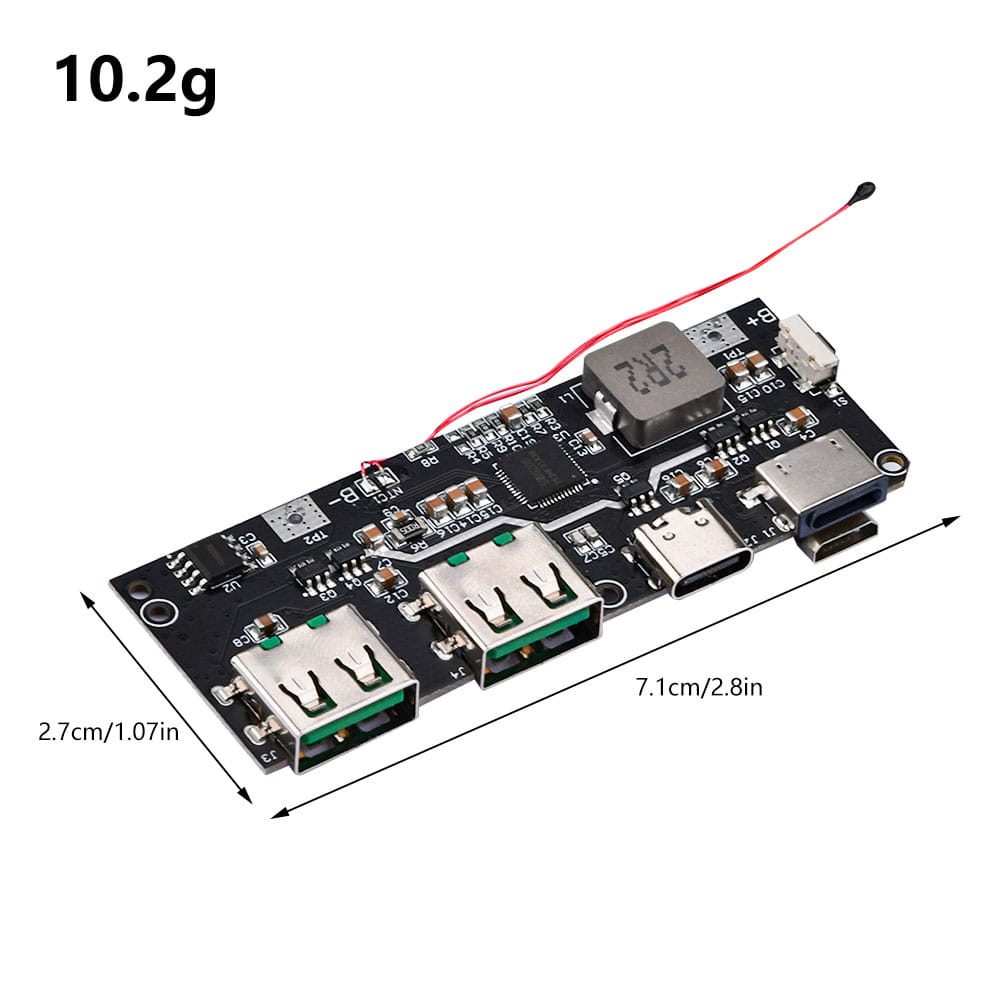

The motherboard includes five USB ports by default: Type-C, Lightning, Micro USB, Type-A1, and Type-A2.

• Lightning port supports PD2.0 fast charging input.
• Type-C port supports AFC, FCP, SCP, PE1.1, PD3.0, PD2.0, QC4+, QC4, QC3.0, and QC2.0 fast charging input.
• Output supports PPS, PD3.0, PD2.0, AFC, FCP, PE2.0, PE1.1, QC4+, QC4, QC3.0, QC2.0, and SFCP fast charging.
• Type-A1 and Type-A2 ports support PPS, PD3.0, PD2.0, AFC, FCP, PE2.0, PE1.1, VOOC, QC4+, QC4, QC3.0, QC2.0, SCP, and SFCP output.
• Micro USB supports AFC, FCP, PE1.1, QC3.0, and QC2.0 fast charging input.

Type-C supports bidirectional fast charging output support and input with varying voltage and current parameters including 5V/9V/12V inputs and outputs ranging up to 5-11V @ 2A or 5-5.9V @ 3A for PPS.

Output support across protocols includes:

• PD3.0/PD2.0: 5V @ 3A, 9V @ 2.4A, 12V @ 1.75A
• QC2.0: 5V @ 3.2A, 9V @ 2.4A, 12V @ 1.75A
• QC3.0: 5V–12V adjustable in 200mV increments
• AFC/FCP/SFCP/PE2.0/PE1.1/VOOC provide various fixed voltages and current outputs to match device charging requirements
• SCP supports 5V @ 4.5A output and 5.5V @ 3A input

The module allows simultaneous external discharge from Type-A1, Type-A2, and Type-C ports with a maximum combined output of 5V @ 4.2A.

Additional Functionalities

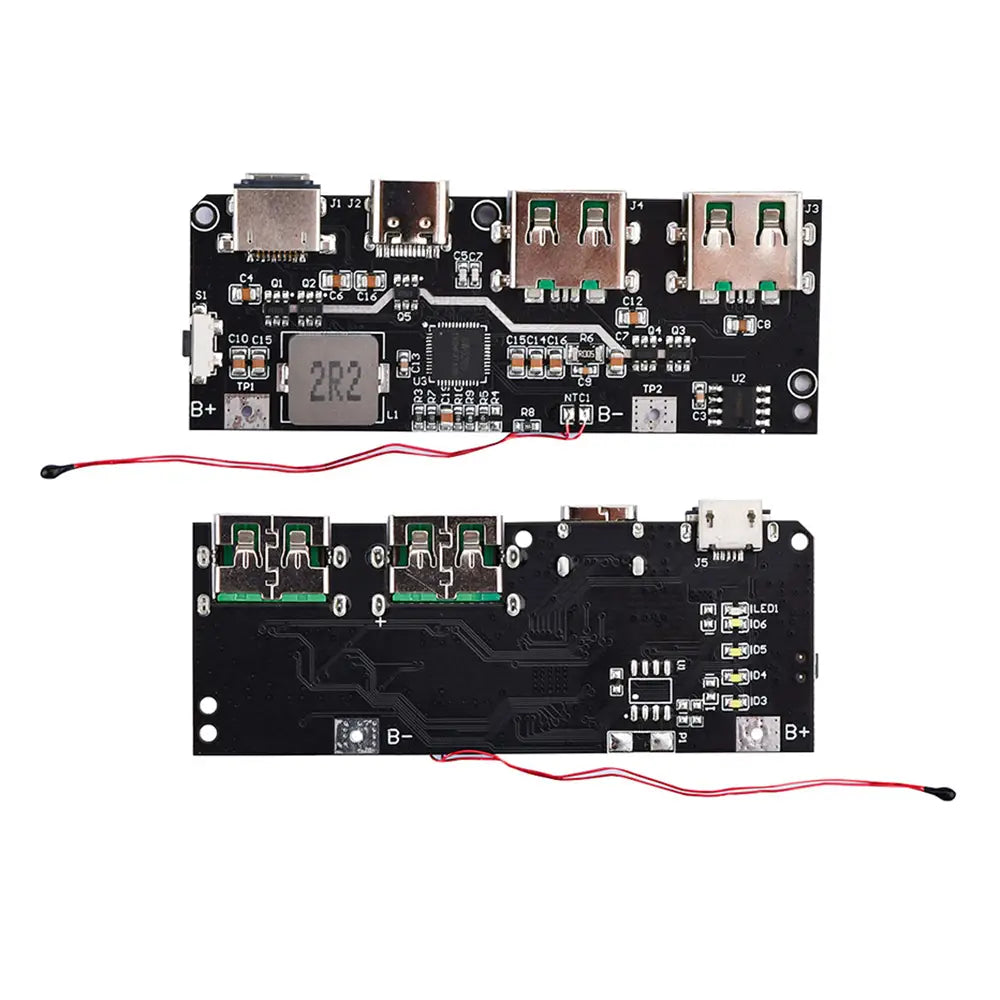

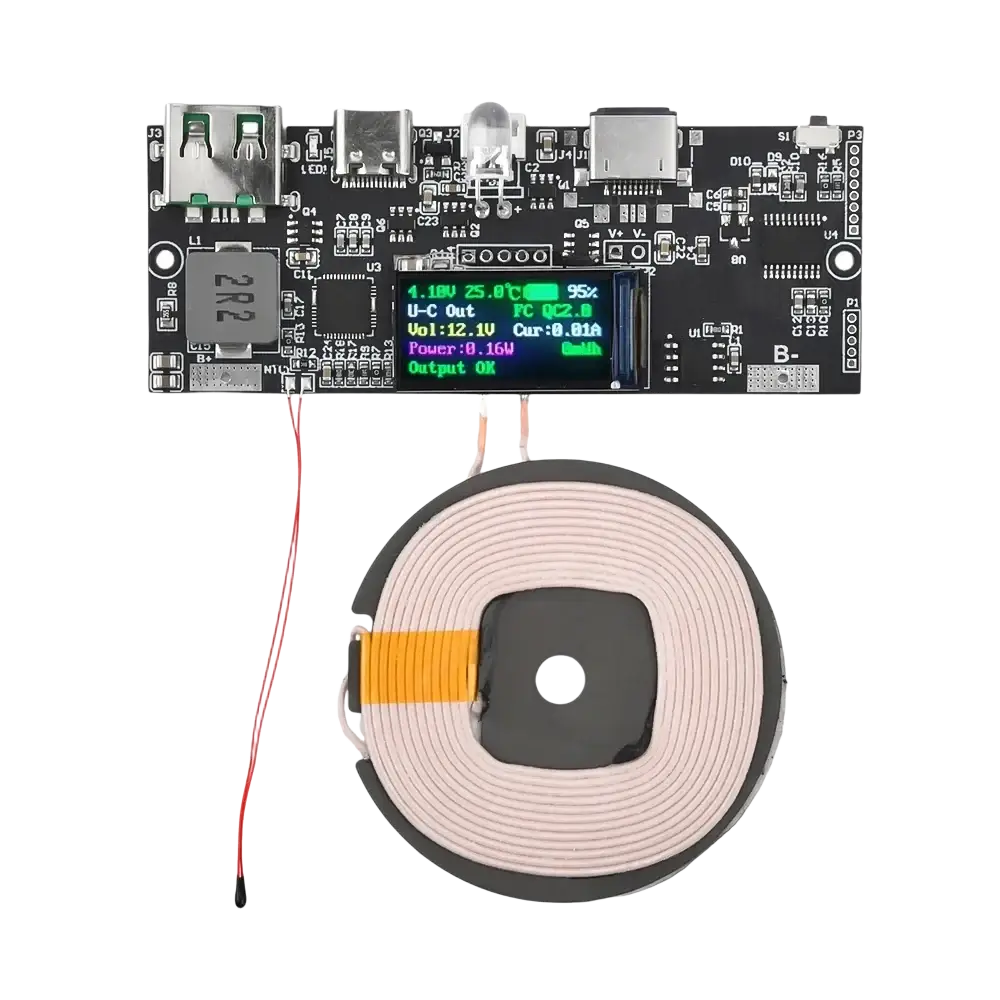

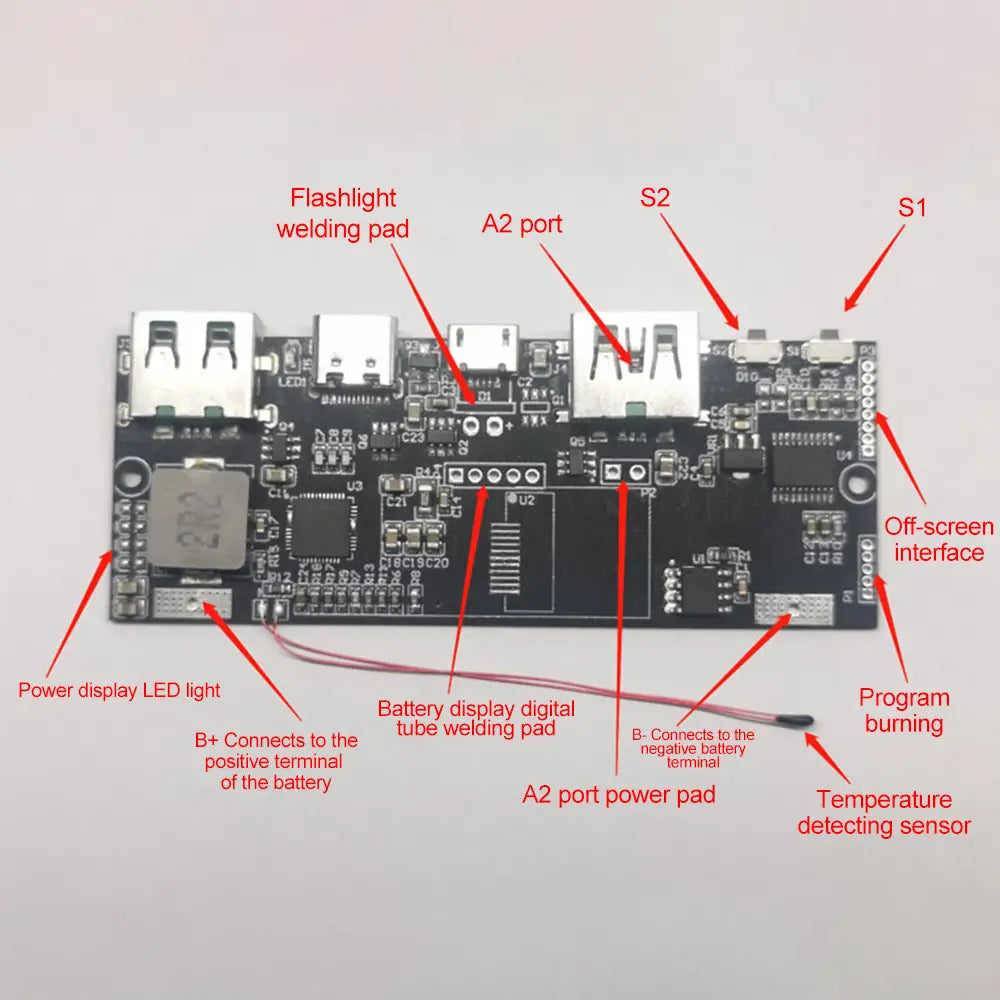

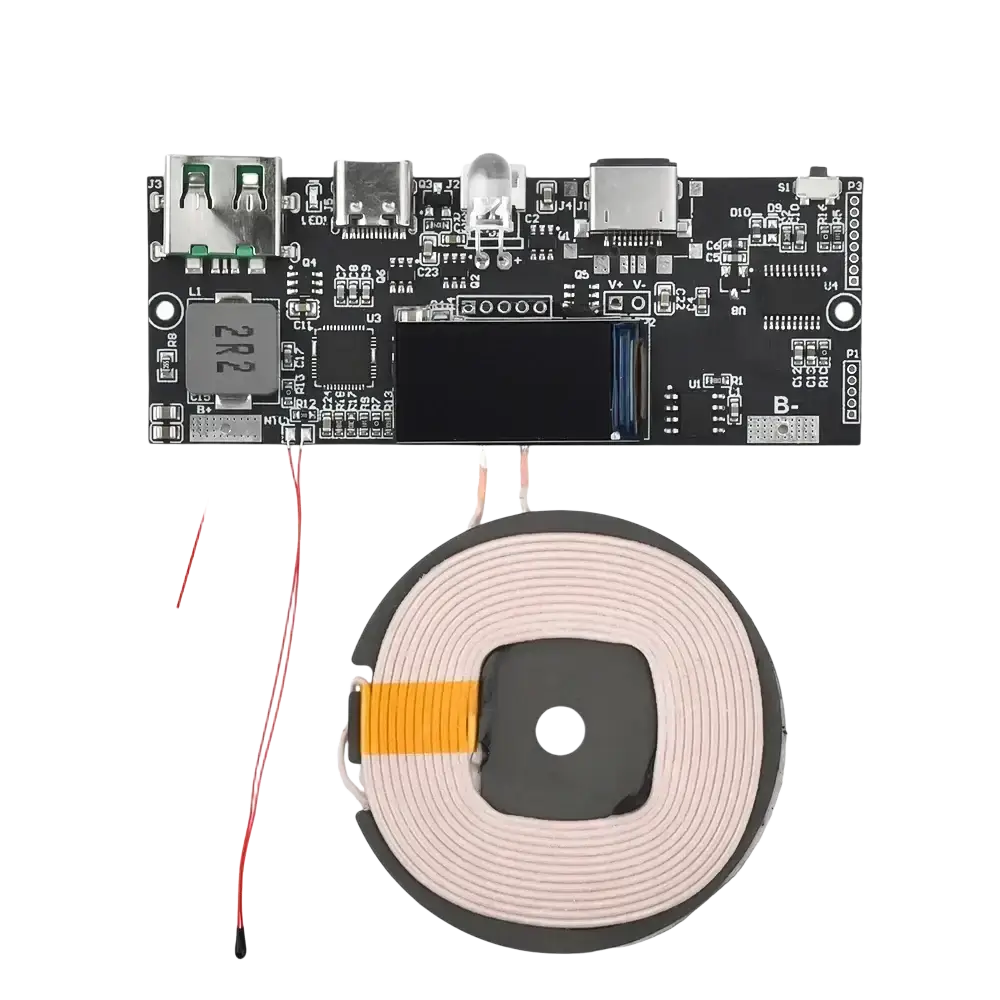

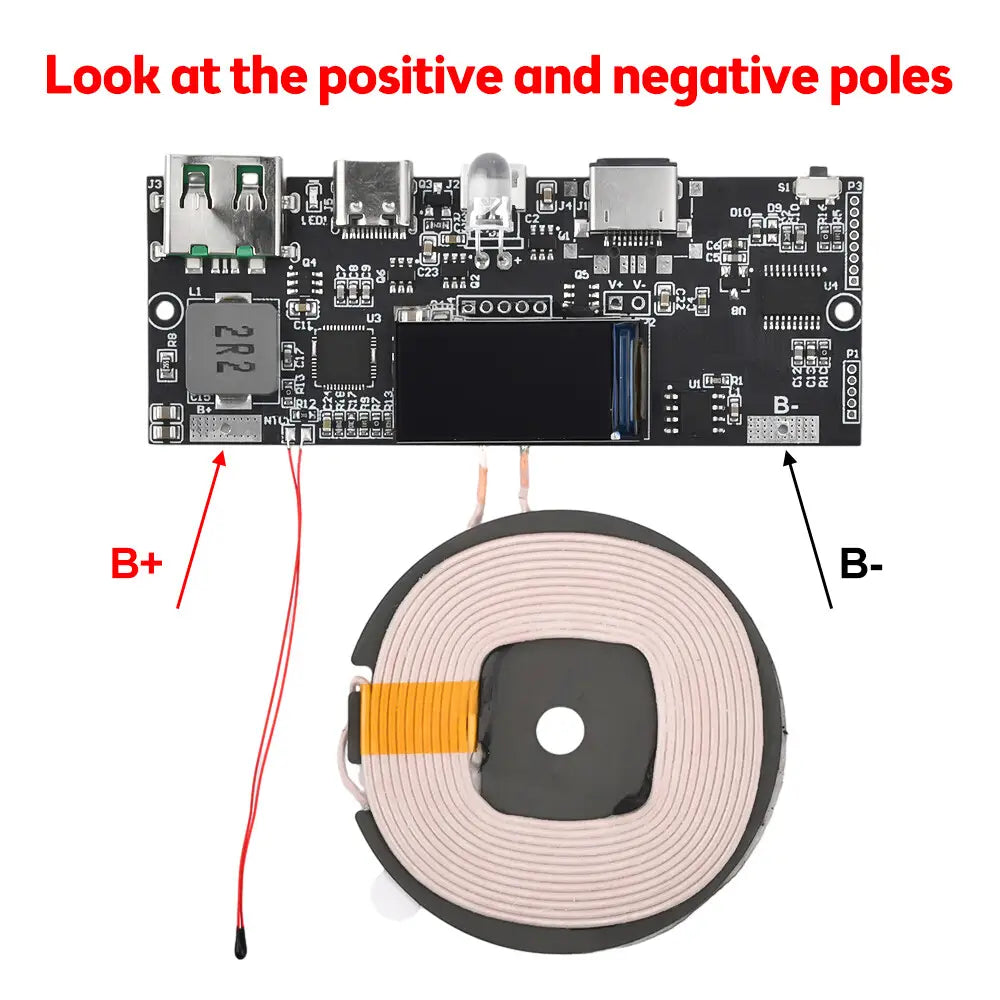

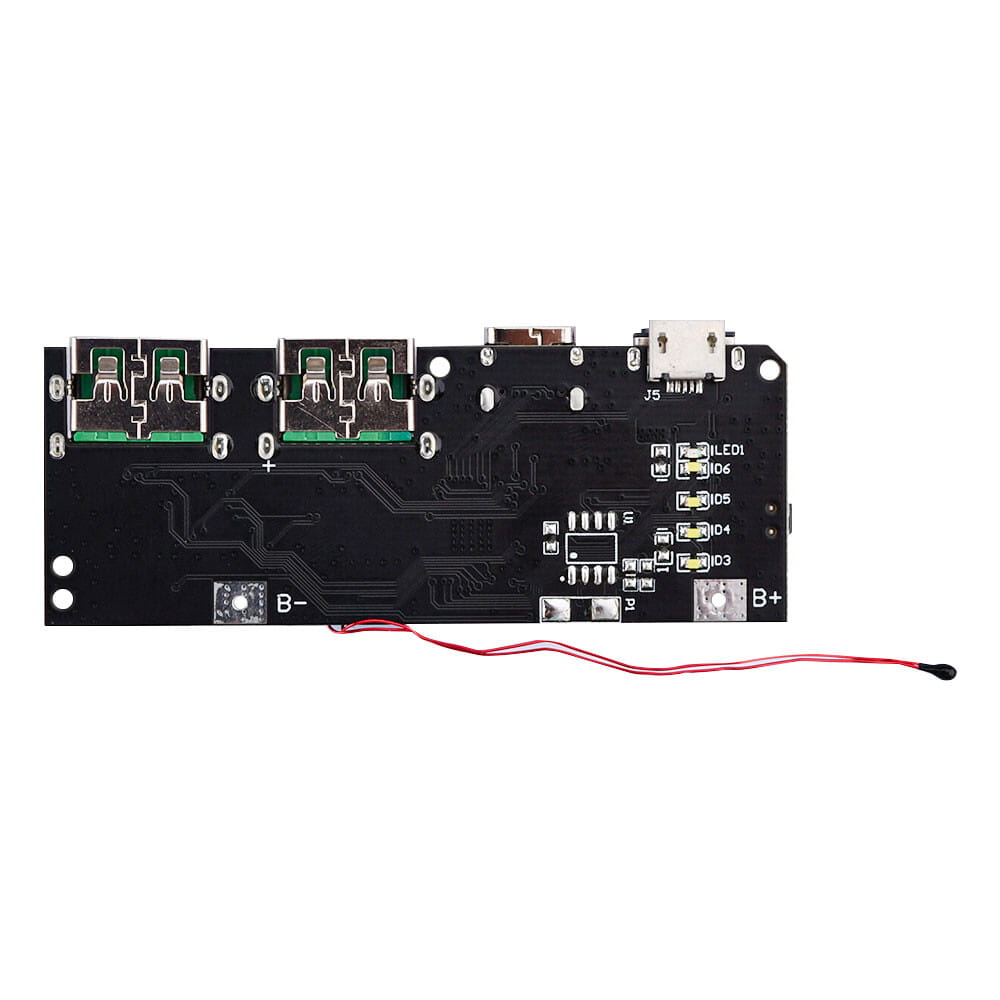

The rear of the board provides options for wireless charging hardware soldering depending on the model. Its key functions for S1 include:

• Short press: Powers wireless charging or opens A1 port output without wireless charging.
• Double click: Forces shutdown.
• Long press: Toggles low current mode used for small devices like watches and Bluetooth gadgets without shutting off for up to 2 hours, and disables flashlight on long press.

Note that the low current mode is designed for efficient charging of small devices but does not equate to low-power charging in all contexts.

Package Included

1X module
