SPECIFICATIONS

Application: Mobile Phone

Brand Name: occkic

Choice: Yes

Condition: New

Dissipation Power: /

High-concerned chemical: None

IP5356 Chip: 5V3A

Operating Temperature: 0-50°C

Origin: Mainland China

PD/QC/VOOC: Type C + USB + Micro USB Port

Package: TQFP

Quantity: 1

Supply Voltage: /

Type: Module

Is_Customized: Yes

Product Overview

This fast charging module by occkic is designed specifically for mobile phone applications, supporting multiple fast charging protocols to deliver efficient and reliable power. Equipped with the IP5356 chip, it supports a charging output of 5V3A, ensuring stable and safe energy transfer. The module is suitable for a diverse range of industrial DIY uses due to its compact size and solid build quality.

Key Features

• High-quality construction guarantees product durability and performance.
• Compact and aesthetically arranged components for easy integration.
• Supports a variety of fast charging protocols, including AFC and FCP, enhancing charging versatility.
• Equipped with three charging ports: Type C, USB, and Micro USB, allowing multiple device compatibility.
• Operating temperature range from 0 to 50°C, suitable for typical device environments.

Technical Parameters

Short Circuit Protection: <50µS

Self-dissipation: Max 150µA

Discharge Constant Current: 5V3A

Recovery Condition: Disconnect the load

Suggested Operating Conditions: 5V3A

Suggested Operating Temperature: -5~45°C

Charging Input Voltage: 4.5~14V

Constant Charging Voltage: 4.00–4.2V

Termination Charging Voltage: 4.2+0.05V

USB-A Output Fast Charging Protocols Supported: QC3.0, QC2.0, AFC, FCP, SCP (Output levels: 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A)

Type-C Support: PD3.0, PD2.0, OC3.0, OC2.0, AFC, FCP, SCP fast charging output and input (Output: 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A; Input: 5V/3A, 9V/2A, 12V/1.5A)

Micro USB Input: Supports AFC and FCP fast charging input (Input: 5V/2A, 9V/2A)

Package Contents

Fast charging module ×1

Features:

1. Use of high-quality materials, product quality is guaranteed

2. Exquisite and compact appearance, beautiful arrangement of components

3. Stable performance, support a variety of fast charging protocols

4. Easy to use, equipped with 3 charging ports

5. Wide range of applications, suitable for a variety of industrial DIY occasions

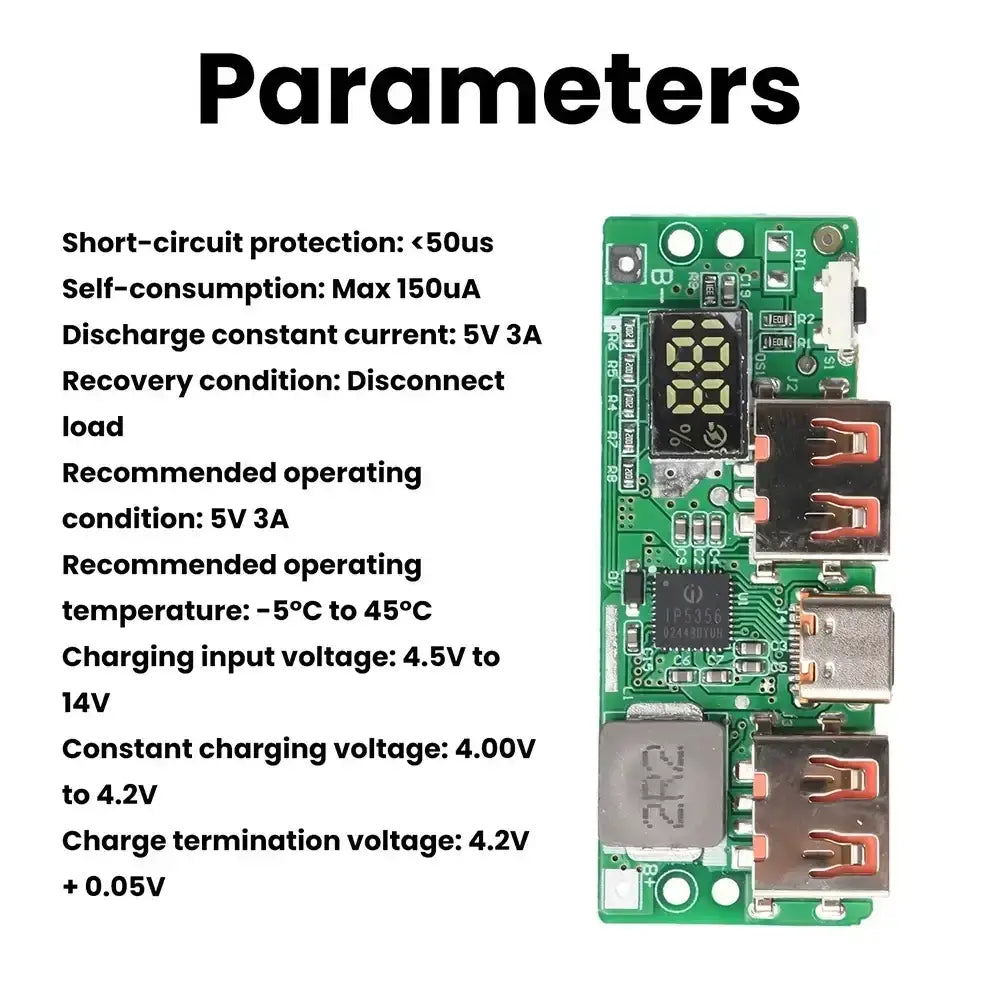

Parameter:

Short circuit protection: <50uS

Self-dissipation: Max 150uA

Discharge constant current: 5V3A

Recovery condition: Disconnect the load

Suggested operating conditions: 5V3A

Suggested operating temperature: -5~45℃

Charging input voltage: 4.5~14V

Constant charging voltage: 4.00-4.2V

Termination charging voltage: 4.2+0.05V

USBA output fast charging protocol (support QC3.0/QC2.0/AFC/FCP/SCP) (output 5V/3A 9V/2A 12V/1.5A 5V/4.5A 4.5V/5A)

Type-C support PD3.0/PD20/OC30/0C20/AFC/FCP/SCP fast charging output, support PD3.0/PD20/AFC/FCP, fast charging input (output 5V/3A9V/22A12V/1.5A5V/4.5A 4.5V/5A), (input 5V/3A 9V/2A12V/1.5A)

Micro input support AFC/FCP fast charging input (input 5V/2A9V/2A)

Package include:

Fast charging module*1
